Motor electronics (ME-SFI) fuel injection and Ignition system position of components - GF07.61-P-0001-01O

Model 210

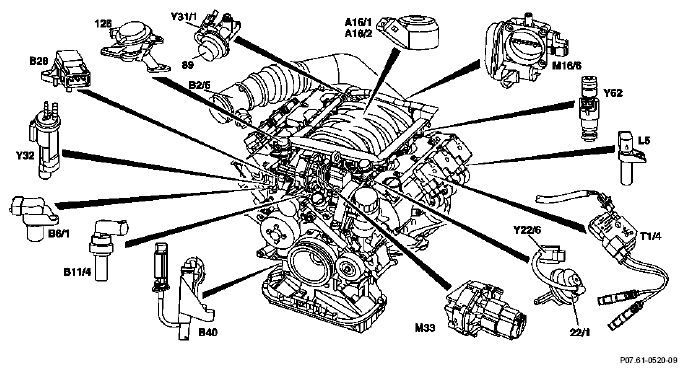

Fig 1: Locating Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

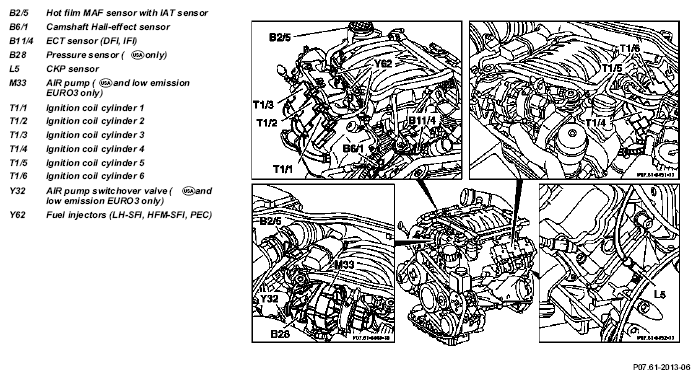

Fig 2: Identifying Motor Electronics (ME-SFI) Fuel Injection And Ignition System Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

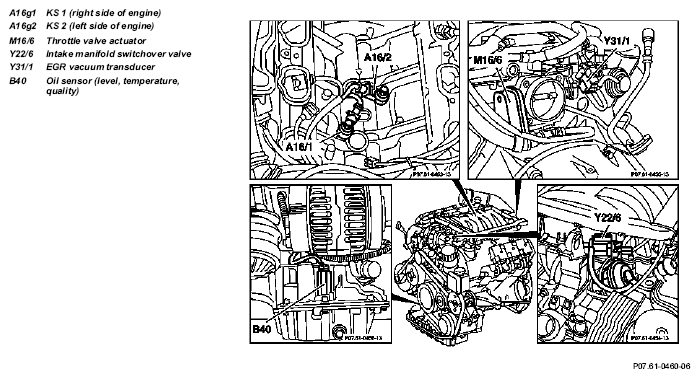

Fig 3: Identifying Throttle Valve Actuator And EGR Vacuum Transducer

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

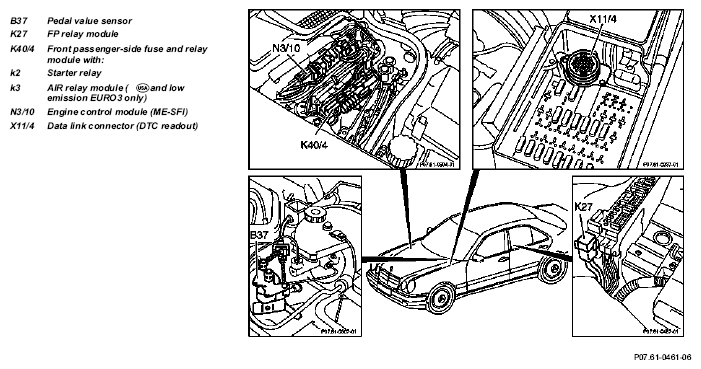

Fig 4: Identifying Pedal Value Sensor, FP Relay Module And Engine Control Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

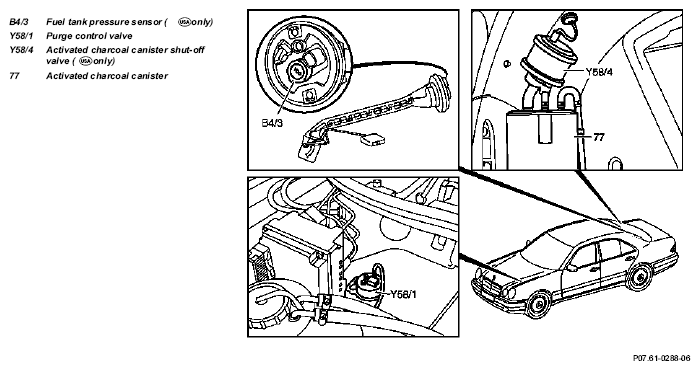

Fig 5: Identifying Fuel Tank Pressure Sensor, Purge Control Valve And Activated Charcoal Canister

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

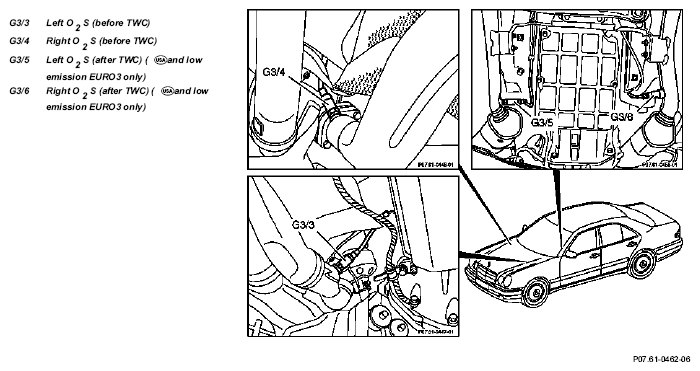

Fig 6: Identifying Left And Right O2 Sensor (Before TWC)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

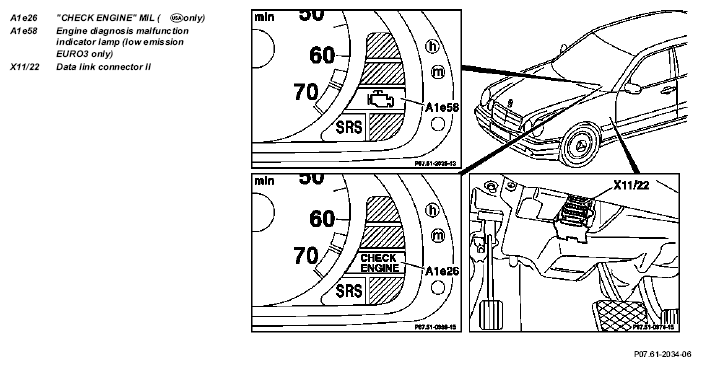

Fig 7: Identifying Engine MIL And Engine Diagnosis Malfunction Indicator Lamp

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
