Fuel injection and ignition system motor electronics (ME-SFI) arrangement of components - GF07.61-P-0001-01F

MODEL 210 with ENGINE 104

with CODE (491) USA version

with CODE (498) Japan version

On engine

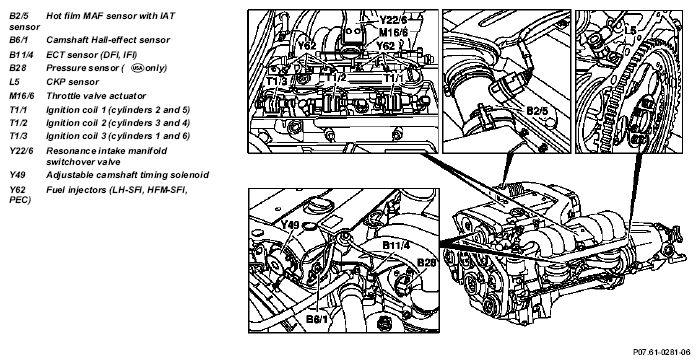

Fig 1: Identifying Hot Film Maf Sensor, Camshaft Hall-Effect Sensor And ECT Sensor

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

On engine

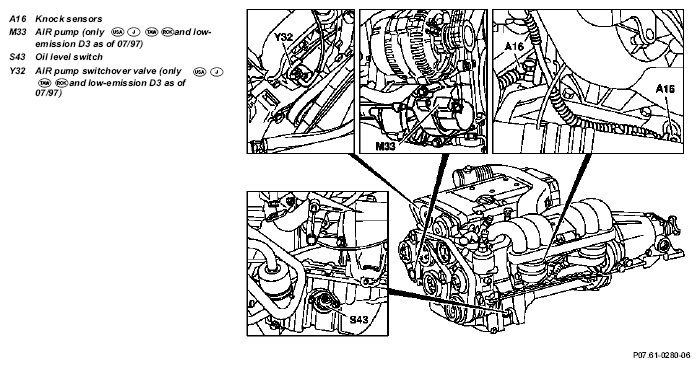

Fig 2: Identifying Knock Sensors, Oil Level Switch And Air Pump Switchover Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In engine compartment

Model 210 only

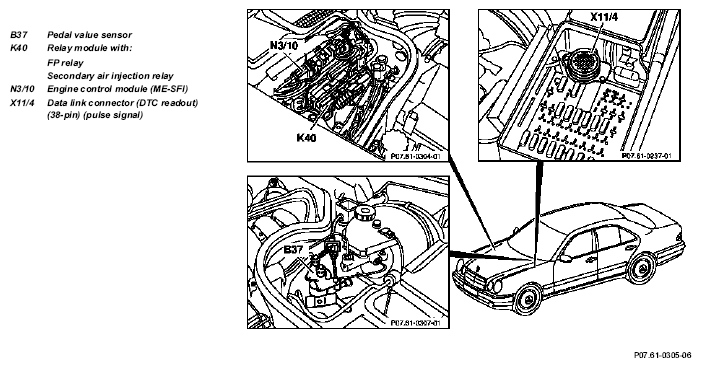

Fig 3: Identifying Pedal Value Sensor, Engine Control Module And Data Link Connector

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In engine compartment

Model 210 only

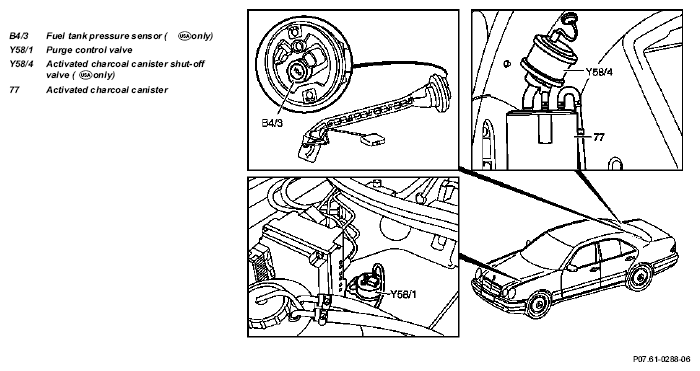

Fig 4: Identifying Fuel Tank Pressure Sensor And Purge Control Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In engine compartment

Model 210 only

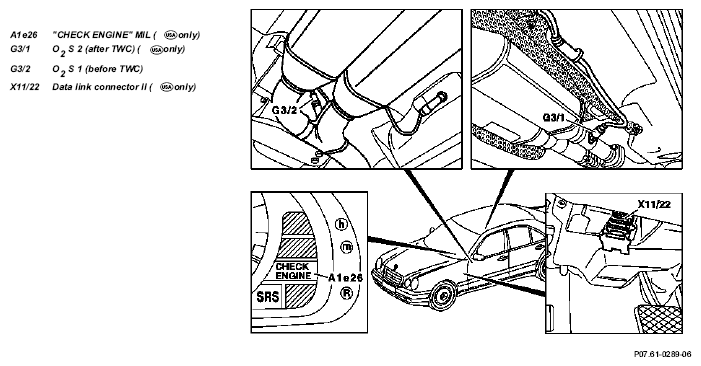

Fig 5: Identifying Engine MIL And Data Link Connector II

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

In engine compartment

Model 210

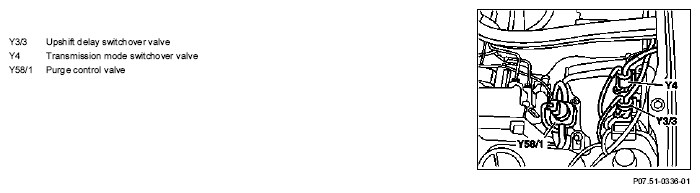

Fig 6: Identifying Upshift Delay Switchover Valve And Transmission Mode Switchover Valve

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
