Test diodes of generator - AR15.40-P-9301-02EA

Commercially available tools

Number	Designation
WH58.30-Z-1046-13A	Engine tester with oscilloscope

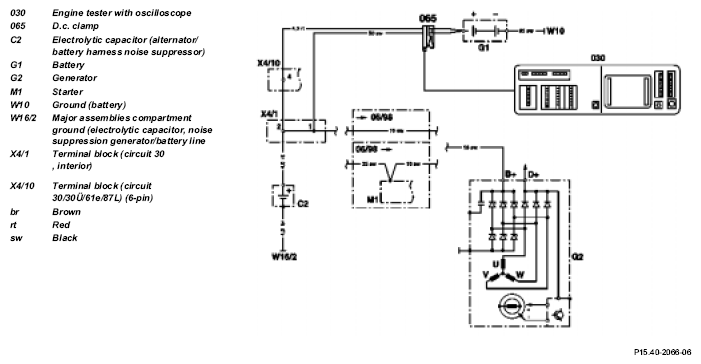

Fig 1: Generator Connection Diagram - Model 129

G04606244

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 129 with engine 119 up to vehicle ident end no. 1F 032 589: Problems with power supply system - test battery voltage-dependent idle speed increase (refer to Diagnosis Manual Engine Volume 2 Group 07.3).

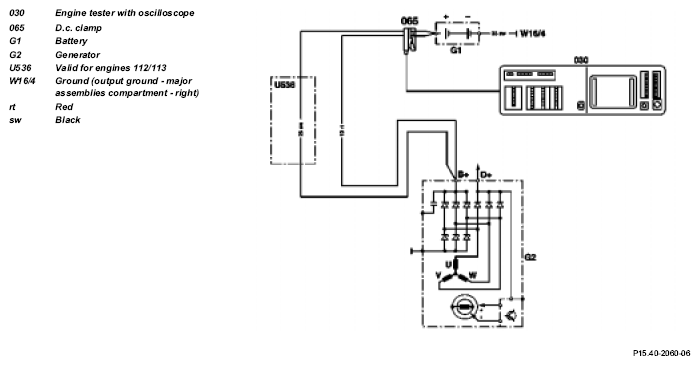

Fig 2: Generator Connection Diagram - Model 163

G04606245

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

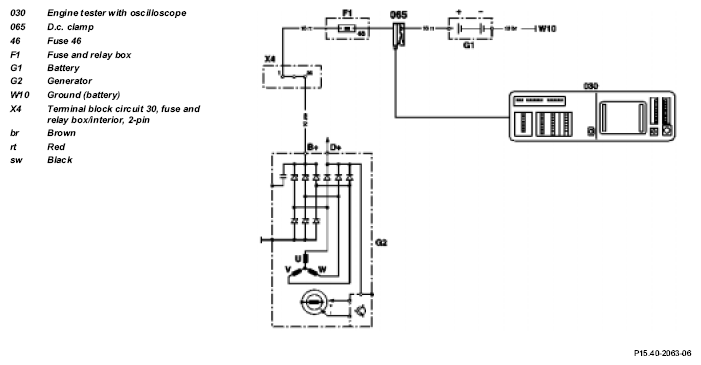

Fig 3: Generator Connection Diagram - Model 168

G04606246

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

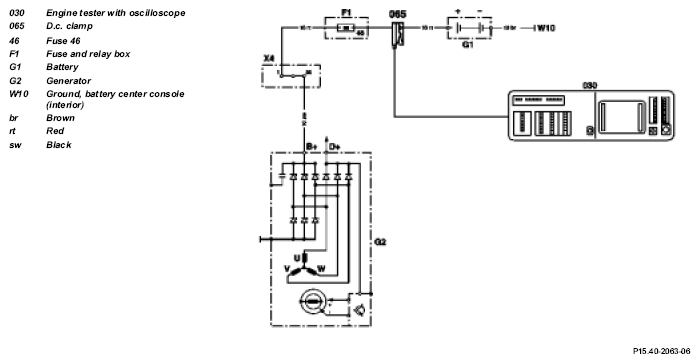

Fig 4: Generator Connection Diagram - Model 414

G04606247

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

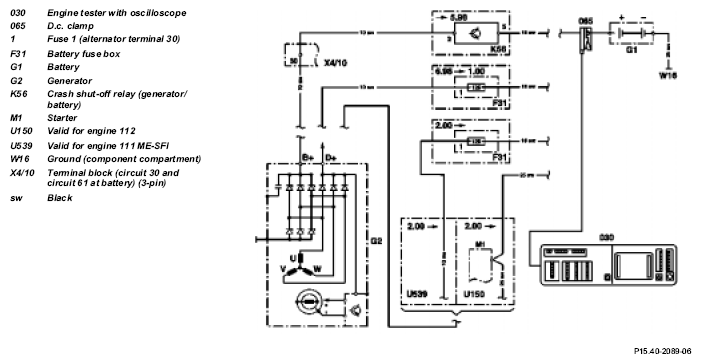

Fig 5: Generator Connection Diagram - Model 170

G04606248

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

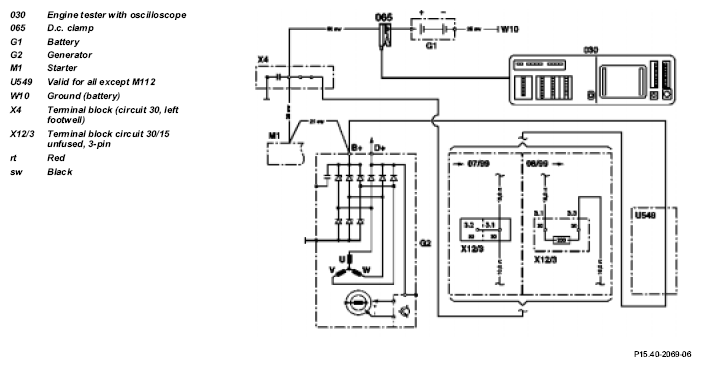

Fig 6: Generator Connection Diagram - Model 202

G04606249

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

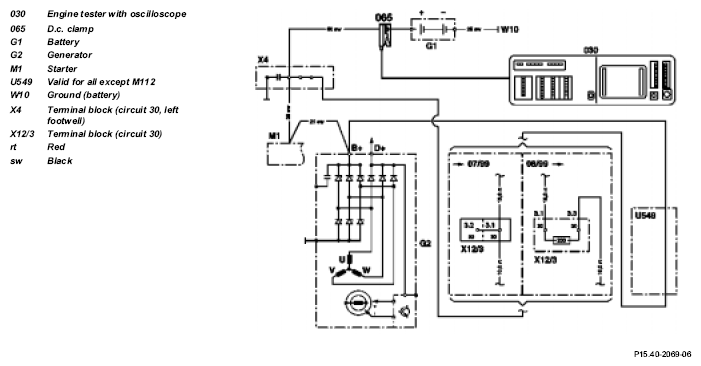

Fig 7: Generator Connection Diagram - Model 208

G04606250

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210: as of 1.6.99 a fuse for protection of generator is located in the terminal block circuit 30 (X12/3).

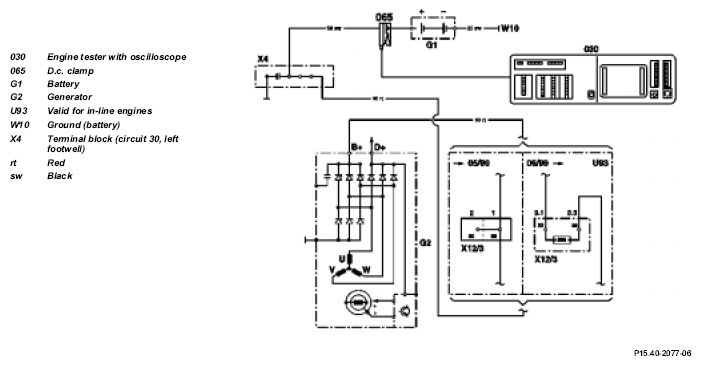

Fig 8: Generator Connection Diagram - Model 210

G04606251

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connect DC clip-on probe (065) from engine tester with oscilloscope (030) to positive pole of battery (G1)
Start engine.
Switch on low beam.
Assess diode harmonics at 3000 rpm (engine speed).

In this test it is not possible to assess the exciter diodes.

Fig 9: Identifying Harmonics - Negative Diode Defective

G04606252

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 10: Identifying Harmonics - Positive Diode Defective

G04606253

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 11: Identifying Diode Harmonics OK

G04606254

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
