Removing and installing starter - AR15.30-P-7100FAF

ENGINE 119.985 in MODEL 210.072

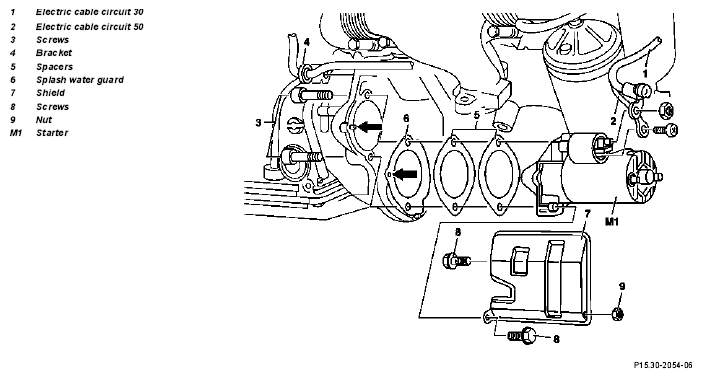

Fig 1: Identifying Starter Components (Engine 119)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries.	No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect ground cable of battery	Insulate cable lug of ground cable as protection against unintentional contact of the disconnected ground cable with ground point W10	AR54.10-P-0003A
	Notes on battery	All models	AH54.10-P-0001-01A
2	Remove bottom engine compartment panel
3	Unscrew bolts (8) and nut (9) and take out shield (7)
4	Unbolt front right engine mount from below, raise engine		ra220d1192110x
5	Remove bracket (4)
6	Disconnect electric cables (1/2)	Nut of connection circuit 30	*BA15.30-P-1001-01A
		Nut of connection circuit 50	*BA15.30-P-1002-01A
7	Unscrew screws (3)	Bolt of starter	*BA15.30-P-1003-01A
8	Take starter (M1) down and out	Installation:  Pay attention to correct installation of splash water guard (6) (arrows) and correct installation and quantity of spacer(s) (5).
9	Install in the reverse order
10	Carry out operational check
11	Render electrical system operational	Perform basic programming.	AR00.19-P-0200D

Starter

Number	Designation		Engine 119
BA15.30-P-1001-01A	Nut of connection of circuit 30	Nm	14
BA15.30-P-1002-01A	Nut of connection of circuit 50	Nm	6
BA15.30-P-1003-01A	Bolt of starter	Nm	58
