Prerequisites for testing alternator - AR15.40-P-5009F
ENGINE 104.945/995,111.942/947/970,112.911/914/921/941,113.940,119.985,602.982, 604.912/917, 605.912 /962, 606.912 /962, 611.961, 612.961, 613.961 in MODEL 210

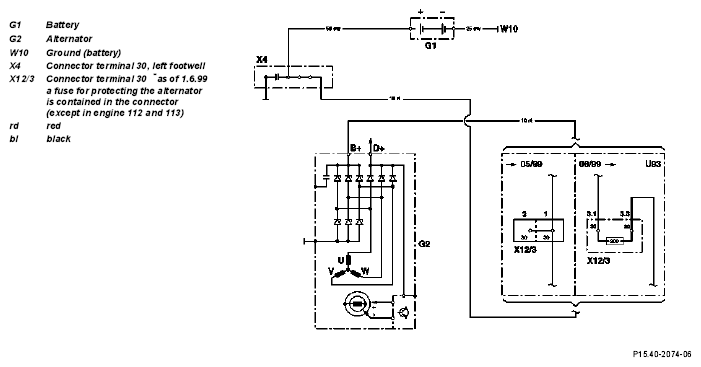

Connection schematic between battery and alternator
| Removing, installing | |||
| 1.1 | Remove rear seat | Model 210 sedan. | AR91.12-P-1700F |
| 1.2 | Fold rear seat cushion forwards and remove battery compartment cover | Model 210 T-model. | |
| Testing | |||
| 2 | Check the alternator fuse (G2) in the connector terminal 30 (X12/3) and replace if necessary | Replace: The entire connector terminal 30 (X12/3) must be replaced. |
|
| 3 | Check electrical line terminal 30 to the following items for firm seat and flawless condition |
|
|
| 4 | Check electrical line terminal 31 to the following items for firm seat and flawless condition |
|
|
| 5 | Check ribbed V-belt tension | ||
| 6 | Check function of the charge indicator lamp in the instrument cluster | *BE54.30-P-1001-01A | |
| 7 | Install in the reverse order |
Test values for alternator charge indicator lamp
| Number | Designation | Model 129, 163, 168, 170, 202, 203, 208, 210 | |
|---|---|---|---|
| BE54.30-P-1001-01A | Position of ignition / glow start switch | Charge indicator lamp Off | 0/1 |
| Charge indicator lamp On | 2 | ||
