Removing, installing shutoff valve - AR47.31-P-8023A
ENGINE 112.941 in MODEL 210.065 /082 with CODE (491) USA version
ENGINE 113.940 in MODEL 210.070 with CODE (491) USA version
ENGINE 113.980 in MODEL 210.074 with CODE (491) USA version
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Risk of explosion from ignition. Risk of poisoning from inhaling and swallowing fuel. Risk of injury as a result of fuel coming into contact with skin and eyes. | No fire, naked flame or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |

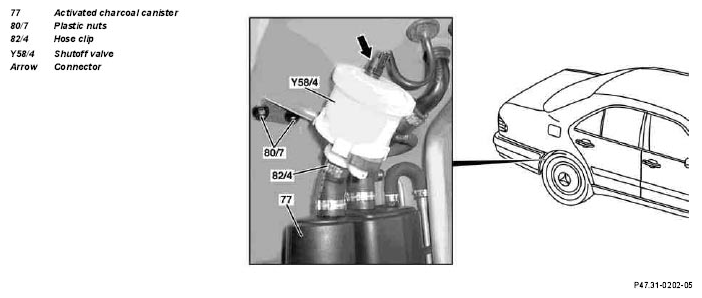

| Rear right wheelhouse liner | remove | ||
| 80/7 | Plastic nuts | unscrew | |
| 82/4 | Hose clip | replace | |
| Y58/4 | Shutoff valve | remove | |
| Arrow | Connector | unplug |
