Removing and installing safety valve - AR47.31-P-8022A
ENGINE 112.941 in MODEL 210.065 /082 with CODE (491) as of Model Year 98 U.S. version
ENGINE 113.940 in MODEL 210.070 with CODE (491) as of Model Year 98 U.S. version
ENGINE 113.980 in MODEL 210.074 with CODE (491) as of Model Year 99 U.S. version
| Removing, installing | |||
| Risk of explosion from ignition. Risk of poisoning from inhaling and swallowing fuel. Risk of injury as a result of fuel coming into contact with skin and eyes. | No fire, naked flame or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1 | Remove trim panel of fuel tank and also right side trim panel of trunk | ||
| 2 | Remove fuel overflow line (82/1) and vent line (82/3) | ||

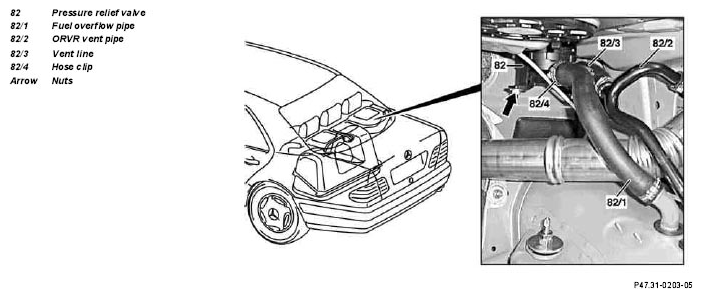

| 3 | Remove pressure relief valve (82) | ||
| 4 | Install in the reverse order |
