Remove/install fuel pumps - AR47.20-P-5713A

ENGINE 112.921 in MODELS 210.063 /263 /081 /281

ENGINE 112.941 in MODELS 210.065 /082 /265 /282

ENGINE 113.940 in MODELS 210.070 /270

ENGINE 113.980 in MODELS 210.074 /274

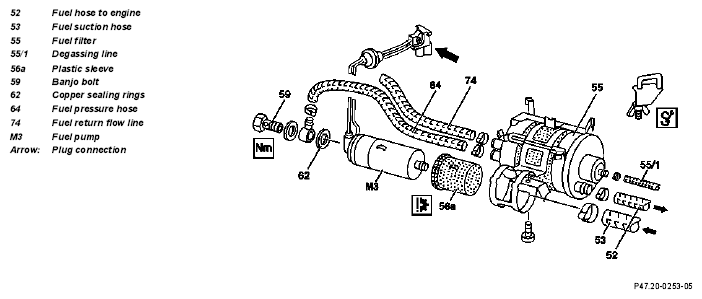

Fig 1: Identifying Fuel Pumps Components (Engine 112, 113)

Model 210 T-model

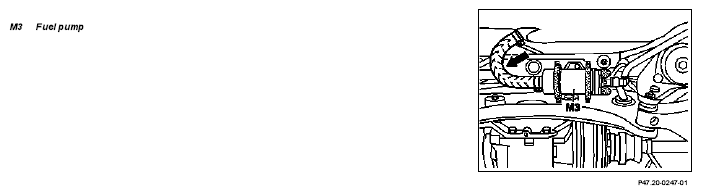

Fig 2: Identifying Fuel Pump (Model 210 T-Model)

Fig. item, etc.	Work instructions
	Risk of explosion  caused by ignition of flammable products, risk of poisoning  caused by inhaling fuel vapors or swallowing fuel as well as risk of injury  to skin and eyes exposed to fuel.	No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Plastic sleeve (56a)	Check, replace if necessary. The plastic sleeve must protrude on both sides of the bracket, otherwise contact corrosion may occur through direct contact of fuel pump with bracket.
	59 Banjo bolt		*BA47.20-P-1001-01B
	Fuel intake hose (53), fuel pressure hose (64)	Disconnecting	Figure
	Fuel pump assembly overview		GF47.20-P-0025-02A
62	Copper sealing rings	replace
Arrow	Model 210 T-model	Do not  unclip fuel suction hose (53) at manifold.

Fuel pump

Fig 3: Identifying Clamping Device (000 589 40 37 00)
