Unbolting camshaft bearing caps - AR05.20-P-6992-05HC

Engine 606 Pay attention to marking of camshaft bearing caps!

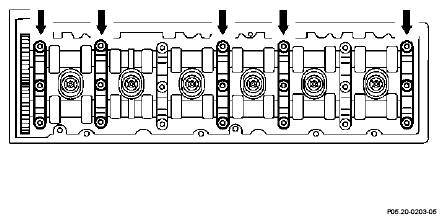

1. Remove camshaft bearing caps except at bearing points 3 and 6 (arrows).
   Fig 1: Locating Camshaft Bearing Caps

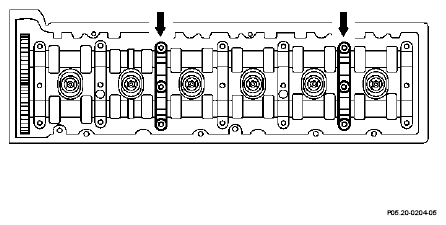

2. Slacken bolts of camshaft bearing caps 3 and 6 (arrows) in stages of a single turn until the counter-pressure is eliminated.

   The camshafts must not be twisted when slackening the camshaft bearing caps.

3. Remove camshaft bearing caps (arrows).
   Fig 2: Locating Camshaft Bearing Caps Slacken Bolts
