Removing/installing |
|
|
| 1 |
Remove poly-V-belt |
|
AR13.22-P-1202HA |
| |
|
Engine 606 in model 463 |
AR13.22-P-1202GG |
| 2 |
Remove cylinder head cover |
|
AR01.20-P-5014HA |
| 3 |
Position piston of cylinder 1 to ignition TDC |
Rotate engine at crankshaft in its direction of rotation |
|
| 4 |

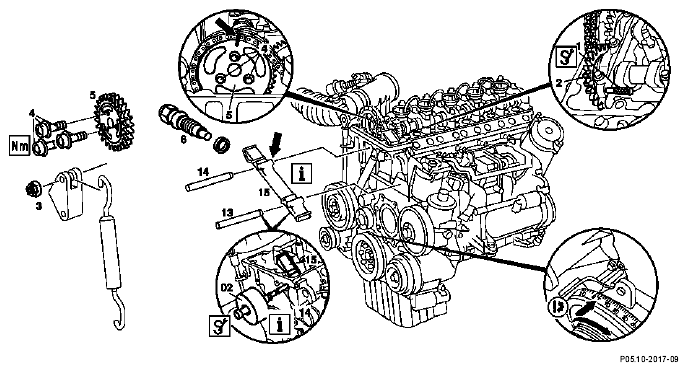

Fix intake camshaft with retaining pin (1) |
Locking pins |
Fig 5 |
| 5 |
Draw camshaft sprocket (5) relative to timing chain (arrow) |
Installation:
Pay attention to colored marking. Inspect basic position of camshaft. |
AR05.20-P-6020HA |
| 6 |
Remove chain tensioner (6) |
|
AR05.10-P-7800HA |
| 7 |
Remove camshaft sprocket (5) |
 |
*BA05.20-P-1001-01A |
| 8 |
Knock out slide rail pins (13, 14) in cylinder head |
|
AR01.30-P-5800-04A |
| |
|
Impact extractor |
Fig 2 |
| |
|
Threaded bolt |
Fig 3 |
| |
|
Extractor |
Fig 4 |
| |
|
Installation:
Apply sealing compound to bearing pins |
*BR00.45-Z-1009-01A |
| 9 |
Remove rail (15). |
Installation:
Install guide rail so that the two mounting holes for the guide rail pins are facing up (arrow) and the open side of the guide rail is pointing opposite to the direction of travel. |
|
| |
|
Timing chain drive as-built configuration description |
GF05.10-P-4000HA |
| 10 |
Install in reverse order |
|
|
