Removing, installing tensioning rail - AR05.10-P-8127HA

ENGINE 604, 605, 606

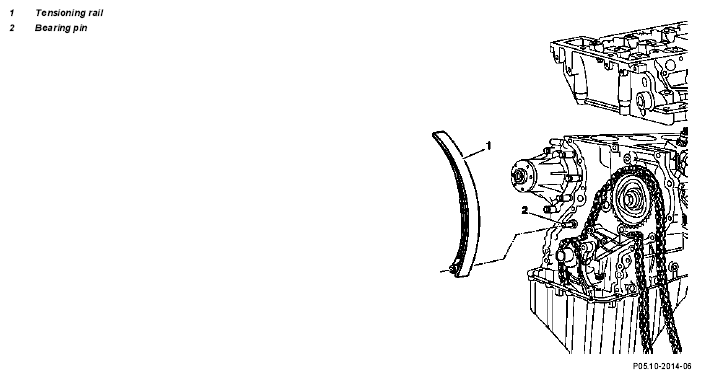

Fig 1: Identifying Tensioning Rail Components

Fig. item, etc.	Work instructions
	Remove cylinder head	Engine 604, 605, 606 except in model 463 ↓	AR01.30-P-5800HA
		Engine 606 in model 463	AR01.30-P-5800GG
	Remove timing case cover	Engine 604, 605, 606 except in model 463 ↓	AR01.40-P-8000HA
		Engine 606 in model 463	AR01.40-P-8000GG
1, 2	Tensioning rail from bearing pin	pull off The plastic shoulder of the tensioning rail cannot be replaced
		Timing chain drive as-built description see →	GF05.10-P-4000HA
