Removing, installing hydraulic valve clearance compensation elements (bucket tappets) - AR05.00-P-2011HY
ENGINE 604, 605, 606
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Camshafts | remove | AR05.20-P-6992HA | |

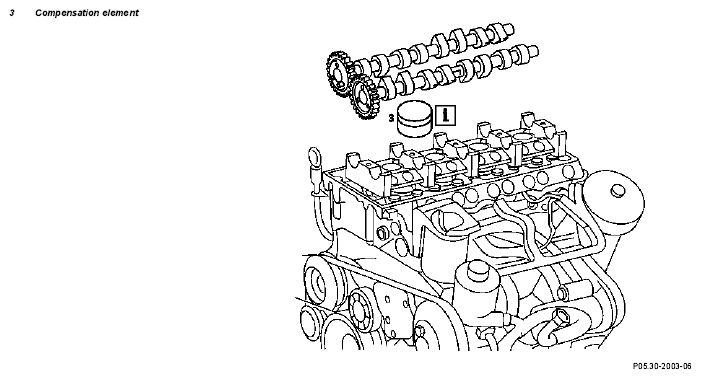

| 3 | Compensation elements | remove The sliding surface of the compensation element would otherwise be magnetized as a result of which minute iron swarf would gather and would cause damage to the compensation element and cam. Re-install compensation elements at the same point if not replaced. Inspect surface of basic bore for scores and damage, |
*WH58.30-Z-1041-02A |
| if necessary according to condition, replace camshaft housing. | AR05.20-P-6995HA |
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1041-02A | Rubber suction cup, dia. 30 mm |
