Removing, installing end cover for camshafts - AR05.20-P-6030HA

ENGINE 604, 605, 606/

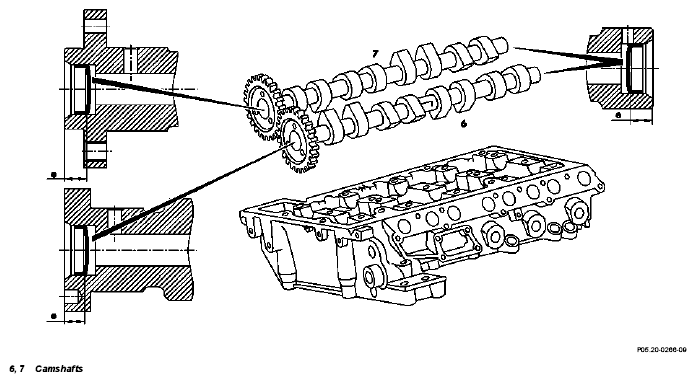

Fig 1: Identifying Camshafts End Cover Components

6, 7 Camshafts

	Removing
1	Remove camshafts (6, 7)		AR05.20-P-6992HA
2	Use a suitable screwdriver to prise out end cover.	Do not damage basic bore of camshaft.
3	Clean mounting hole for metal cover of hollow-drilled camshaft, remove grease
	Installing
4	Use drift to knock in end cover (1).	Use new end cover (1) The end cover (1) must not be seated at the end of the bore; pay attention to insertion depth.
	Drift for knocking in end cover of camshaft		WF58.50-P-0520-01A
5	Install camshafts (6, 7)		AR05.20-P-6992HA
