Removing and installing slide rail in timing case cover - AR05.10-P-8484HA

ENGINE 604, 605, 606

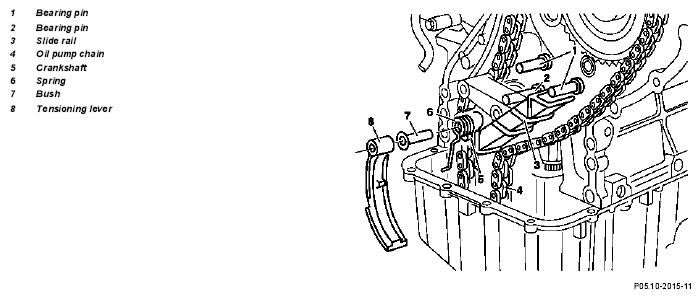

Fig 1: Identifying Slide Rail In Timing Case Cover Components

	Removing, installing
1	Remove timing case cover	All except engine 606 in model 463	AR01.40-P-8000HA
		Only engine 606 in model 463	AR01.40-P-8000GG
2	Pull tensioning lever (8) off bearing pin (2) and carefully slacken spring (6)
3	Pull off tensioning lever (8) together with spring (6) and bush (7)
4	Pull off slide rail (3)	Timing chain drive as-built description	GF05.10-P-4000HA
5	Install in the reverse order
