Reaming basic bore to standard size I - AR05.30-P-3731-02A

Engine 604, 605, 606

Fig 1: Identifying Supports (606 589 00 31 00)

Fig 2: Identifying Reamer (119 589 00 53 00)

Test data of valve guides

Number	Designation			Engine 604, 605, 606 1st version up to 11.94	Engine 604, 605, 606 2nd version as of 11.94
BE05.30-P-1001-02A	Valve guide basic bore in cylinder head	Standard size	mm	12.5-12.51	12.5-12.51
		Standard size I	mm	12.53	12.53
		Repair size I	mm	12.70	12.70

Place cylinder head (1) on the supports (02) 606 589 00 31 00.
Ream basic bore with reamer (05) 119 589 00 53 00 to standard size I. Lubricate with petroleum when performing this step. Use only slight pressure for reaming and do not tilt reamer (05). Clean blades of reamer before each reaming operation.
Standard size valve guides are not supplied as replacement parts as the overlap which would exist when they are installed would not be sufficient.

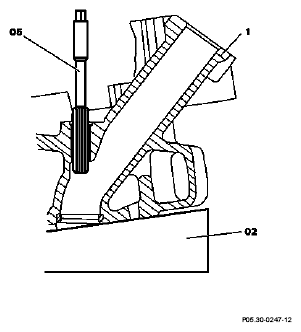

Fig 3: Reaming Basic Bore To Standard Size
