Measure valve setback to cylinder head - AR05.30-P-4100-01A
Engine 604, 605, 606
Test values for cylinder head
| Number | Designation | Engine 604, 605, 606 | ||
|---|---|---|---|---|
| BE01.30-P-1008-02A | Valve setback (a) with new valves and new valve seat rings | Exhaust valve | mm | 1.3...1.7 |
| Inlet valve | mm | 1.3...1.7 | ||

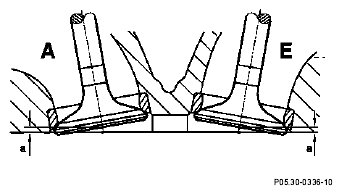

| Fig. see | AR01.30-P-7162-01A | |||
Workshop equipment
| WE58.40-Z-1002-19A | Depth gage |
- Measure valve setback (a) with depth caliper gage.
