Knocking out valve guide - AR05.30-P-3731-01A

Engine 604, 605, 606

Fig 1: Identifying Supports (606 589 00 31 00)

Fig 2: Identifying Removal Drift (606 589 00 15 00)

Fig 3: Identifying Removal Drift (111 589 02 15 00)

1. Place cylinder head (1) on the supports (02) 606 589 00 31 00
2. Use drift (01) 606 589 00 15 00 ø 6 mm or 111 589 02 15 00 ø 7 mm to knock out valve guides (54) from the combustion chamber end.

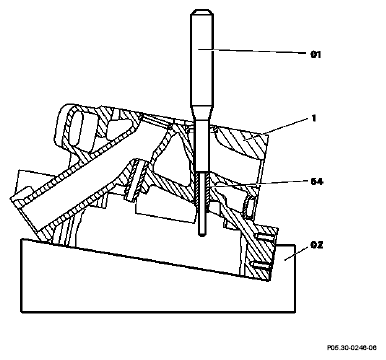

   Fig 4: Knocking Out Valve Guide
