Insert valve guide, inspect - AR05.30-P-3731-03AV

Test and adjustment values for valve guides

Number	Designation			Engine 112 except 112.951/976, Engines 113.940/941/ 942/943/944/ 945/946/948/ 960/961/962/ 963/964/965/ 966/967/968/ 969/971/980/ 981/982/984/ 986/987/988/ 990/991/992/ 993/995	Engines 112.951/976
BE05.30-P-1001-02D	Outside diameter of exhaust and intake valve guide	Standard series	mm	12.540...12.551	12.540...12.551
		Standard I series (color: blue)	mm	12.560...12.571	12.560...12.571
		Repair stage I (color: red)	mm	12.740...12.751	12.740...12.751
		Repair stage II (color: yellow)	mm	13.140...13.151	13.140...13.151
BE05.30-P-1002-02D	Bore diameter in cylinder head of exhaust and intake valve guide	Standard series	mm	12.500...12.511	12.500...12.511
		Standard I series (color: blue)	mm	12.520...12.531	12.520...12.531
		Repair stage I (color: red)	mm	12.700...12.711	12.700...12.711
		Repair stage II (color: yellow)	mm	13.100...13.11113.100...13.1	13.100...13.11113.100...13.1
BE05.30-P-1003-02D	Overlap in cylinder head		mm	0.029...0.051	0.029...0.051
BE05.30-P-1004-02D	Length	L	mm	50	50
BE05.30-P-1005-02D	Dimension	A	mm	14.3 (±0.2)	14.3 (±0.2)

Fig 1: Identifying Supports1 Pair (606 589 00 31 00)

Fig 2: Identifying Drift (113 589 00 15 00)

Fig 3: Identifying Feeler Gauge (102 589 01 23 00)

Place cylinder head onto the supports (1).

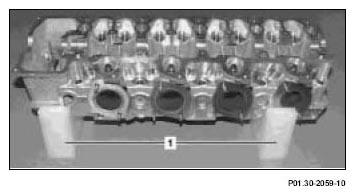

Fig 4: Identifying Cylinder Head Supports
Coat the outside of valve guide (5) with oil.

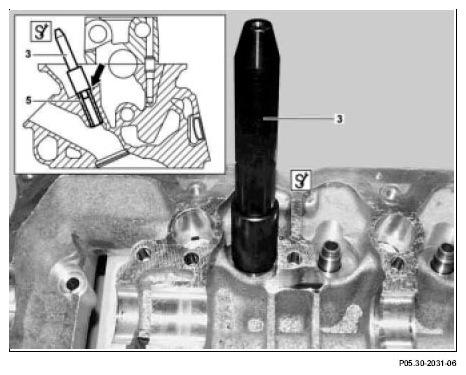

Position the valve guide (5) and knock into the cylinder head as far as the stop (arrow) of the insertion drift (3). Check the secure seating of the valve guide (5). The installation depth of the valve guide (5) is set by the drift punch (3).

Fig 5: Identifying Valve Guide
Check the valve guide (5) with the feeler gauge (4). The side of the feeler gauge (4) marked with '0' must be inserted completely into the valve guide (5). The valve guide (5) must be replaced if the feeler gauge (4) cannot be inserted completely. The valve guide (5) is made of powdered metal, so reaming is not possible.

Fig 6: Identifying Valve Guide And Feeler Gauge
