Bolt for camshaft housing on cylinder head - AR05.20-P-6992-10A

Engines 604, 605, 606 from 09.94

TORQUE SPECIFICATION Camshaft

Number Designation Engines 604, 605, 606
BA05.20-P-1002-01A Bolt for camshaft bearing cap Nm 15
BA05.20-P-1003-01A Bolt for camshaft housing on cylinder head Nm 15

    Engine 604

  1. Unscrew camshaft bearing caps 2 and 4.
  2. Screw on camshaft case using two bolts (arrows) part-no. 606 016 03 71 (M7X41).

    IMPORTANT The bolts can remain built-in

  3. Install camshaft bearing caps.

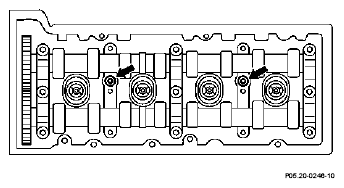

    Fig 1: Locating Camshaft Bearing Caps
    G04623737

    4. Engine 605

  4. Unscrew camshaft bearing caps 2 and 5.
  5. Screw on camshaft case using two bolts (arrows) part-no. 606 016 03 71 (M7X41).

    IMPORTANT The bolts can remain built-in

  6. Install camshaft bearing caps

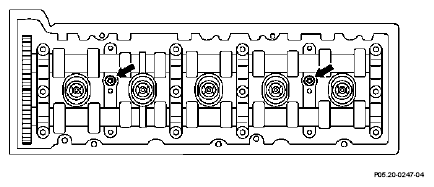

    Fig 2: Locating Camshaft Bearing Caps
    G04623738

    7. Engine 606

  7. Unscrew camshaft bearing caps 2 and 5.
  8. Screw on camshaft case using two bolts (arrows) part-no. 606 016 03 71 (M7X41).

    IMPORTANT The bolts can remain built-in

  9. Install camshaft bearing caps

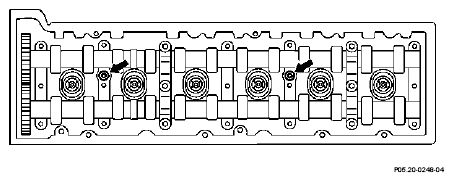

    Fig 3: Locating Camshaft Bearing Caps
    G04623739
