Vibration damper with unhardened contact surface for radial seal - BT03.30-P-0003-01A

ENGINE 602, 605, 606

ENGINE 602.982 #0 as of 026411,

602.982 #2 as of 027454,

605.912 #0 as of 011805,

605.912 #2 as of 002950,

605.960 #0 as of 032799,

605.960 #2 as of 021611,

605.962 #0 as of 002042,

606.961 #2 as of 005480,

606.962 #2 as of 018403

Modified vibration damper

Vibration dampers with unhardened contact surface (2) are fitted to the engine stated above.

These vibration dampers must be fitted only in combination with the crankshaft radial seals (1) with PTFE sealing lips (teflon coating).

The raised part no. is indicated on the rear of the vibration damper, see table.

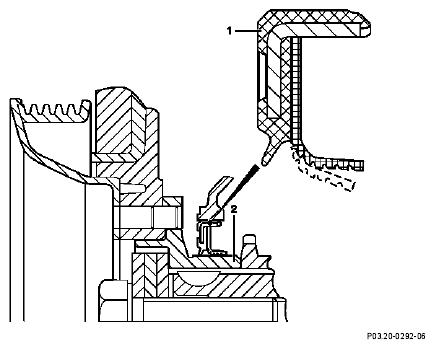

Fig 1: Locating Crankshaft Radial Seals And Vibration Dampers

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
