Belt pulley/vibration damper as-built configuration - GF03.30-P-0800HD

ENGINE 605.910 /911 /912 as of 1.5.95, 605.960 as of 1.7.95, 605.962, 606.910 as of 1.7.95, 606.912

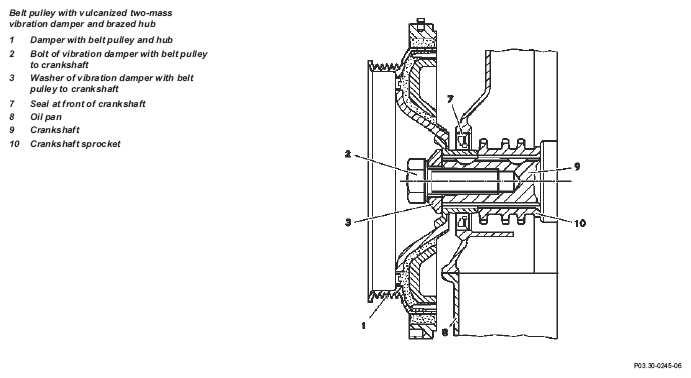

Fig 1: Identifying Belt Pulley With Vulcanized Vibration Damper And Brazed Hub
G04631631Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
