Replace rear crankshaft radial sealing ring - AR03.20-P-3063B

ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE 112 in MODEL 129, 163, 170, 202, 203, 208, 209, 210, 220

ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113 in MODEL 129, 163, 202, 208, 209, 210, 220, 230.474 /475

ENGINE 112.913 in MODEL 211.061/261

ENGINE 112.949 in MODEL 211.065/265

ENGINE 113.967 in MODEL 211.070/270

ENGINE 113.982 in MODEL 463.243/246

ENGINE 112.917 in MODEL 211.080/280

ENGINE 112.954 in MODEL 211.082/282

ENGINE 113.969 in MODEL 211.083/283

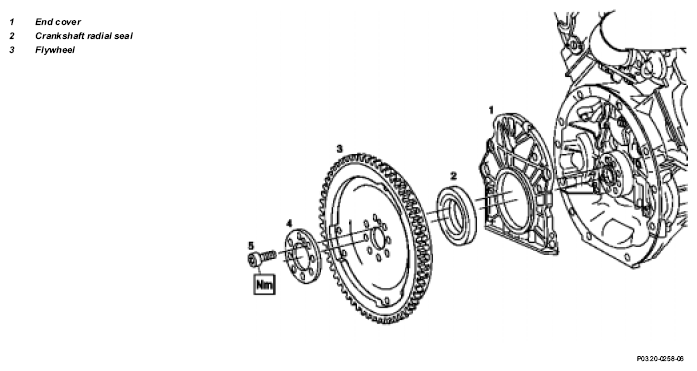

Shown on engine 112

	Remove/install
1	Remove flywheel (3)/ driven plate		AR03.30-P-8001C
2	Remove end cover (1).		AR01.40-P-8913B
3	Remove crankshaft radial seal (2)	The crankshaft radial sealing ring (2) at the end cover (1) cannot be exchanged. This end cover (1) is fitted at the factory and therefore must be replaced. Crankshaft radial sealing ring (2) must not be pushed out when the end cover (1) is fitted. Installation:  First install the end cover (1) and then install the crankshaft radial sealing ring (2):↓ Install crankshaft radial sealing ring (2).	AR03.20-P-3063-01B  Figure
4	Install in the reverse order	Before installing transmission, inspect for oil leaks
