Widening cylinder bore in the crankcase - AR01.40-P-9271A
ENGINES 604, 605, 606 /
| Machine | |||
| 1 | Drill cylinder bore | Observe tool manufacturer's operating instructions, maintain dimensions in accordance with test and setting values. | |

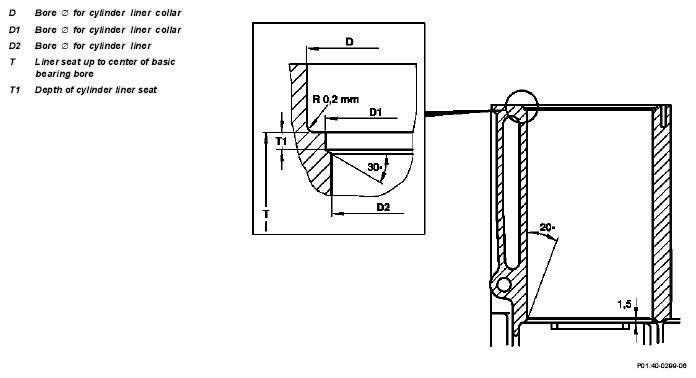

| Bore - Ø (D2) | *BE01.40-P-1007-02B | ||
| 2 | Bore liner collar seat | Bore Ø (D, D1) | *BE01.40-P-1008-02B |
| Distance between cylinder liner collar seat and contact surface of crankshaft bearing cap (T) | *BE01.40-P-1009-02B | ||
| Depth of cylinder liner seat (T1) | *BE01.40-P-1010-02B | ||
| 3 | Deburr crankcase with polishing stone at the chamfer |
Test values for crankcase
| Number | Designation | Engine 604.910/912 | ||
|---|---|---|---|---|
| BE01.40-P-1007-02B | Bore dia. for cylinder liner in crankcase | D2 | mm | 91.500...91.535 |
| See picture in | - | |||
| BE01.40-P-1008-02B | Bore dia. for cylinder liner collar in crankcase | D1 | mm | 92.09...92.11 |
| D | mm | 94.15...94.25 | ||
| See picture in | - | |||
| BE01.40-P-1009-02B | Liner seat up to center of basic bearing bore (T) | mm | 231.0...231.2 | |
| See picture in | - | |||
| BE01.40-P-1010-02B | Depth of cylinder liner seat (T1) | mm | 1.0...1.2 | |
| See picture in | - | |||
| BE01.40-P-1011-02B | Chamfer of cylinder bore at bottom cylinder runout | mm | 1.5x20° | |
Test values for crankcase
| Number | Designation | Engine 604.915/917, 605.91/96, 606.91/96 | ||
|---|---|---|---|---|
| BE01.40-P-1007-02B | Bore dia. for cylinder liner in crankcase | D2 | mm | 90.000...90.035 |
| See picture in | - | |||
| BE01.40-P-1008-02B | Bore dia. for cylinder liner collar in crankcase | D1 | mm | 90.55...90.65 |
| D | mm | 92.65...92.75 | ||
| See picture in | - | |||
| BE01.40-P-1009-02B | Liner seat up to center of basic bearing bore (T) | mm | 231.0...231.2 | |
| See picture in | - | |||
| BE01.40-P-1010-02B | Depth of cylinder liner seat (T1) | mm | 1.0...1.2 | |
| See picture in | - | |||
| BE01.40-P-1011-02B | Chamfer of cylinder bore at bottom cylinder runout | mm | 1.5x20° | |
