Replace steel ball with plug - AR01.40-P-8498-01HA

TORQUE SPECIFICATION

Crankcase, timing case cover, end cover

Number	Designation		Engine 604, 605, 606
BA01.40-P-1003-01A	Plug of crankcase	Nm	50

TORQUE SPECIFICATION

Crankcase, timing case cover, end cover

Number	Designation		Engine 602.982/ 983
BA01.40-N-1004-01B	Plug of oil gallery of crankcase	Nm	50

Repair materials

Number	Designation	Order number
BR00.45-Z-1001-02A	Quick glue	A 002 989 94 71

Knock out steel balls

A Plug at front crankcase

Cut thread in the oil duct.
M18x1.5

thread length 10 mm
Clean oil duct thoroughly.
Mount plug (1) 902 997 00 32 with sealing ring (1a) 007 603 018 103.

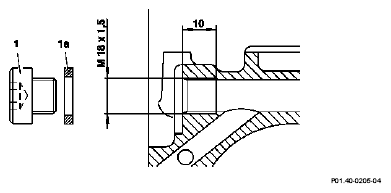

Fig 1: Identifying Plug At Front Crankcase
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

B Plug at rear crankcase

Cut thread in the oil duct.
M16x1.5

thread length 14 mm
Clean oil duct thoroughly.
Coat plug (2) 000 906 016 002 with adhesive and screw in

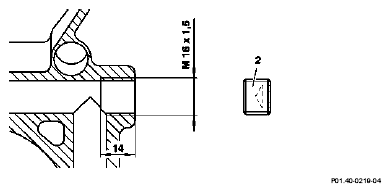

Fig 2: Identifying Plug At Rear Crankcase
