Oil sump bolt diagram - AR01.45-P-7500-06HA

Pay attention to different bolt lengths and bolt diameters!

Engine 111

(with manual transmission)

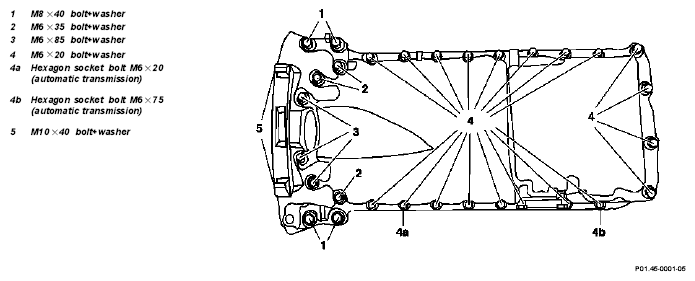

Fig 1: Identifying Oil Sump Bolt Diameters - Engine 111

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 604

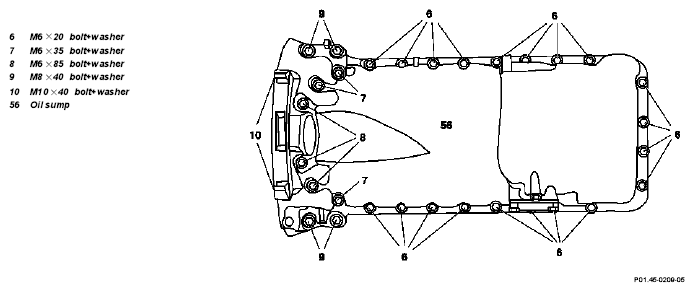

Fig 2: Identifying Oil Sump Bolt Diameters - Engine 604

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 602.982/983,605

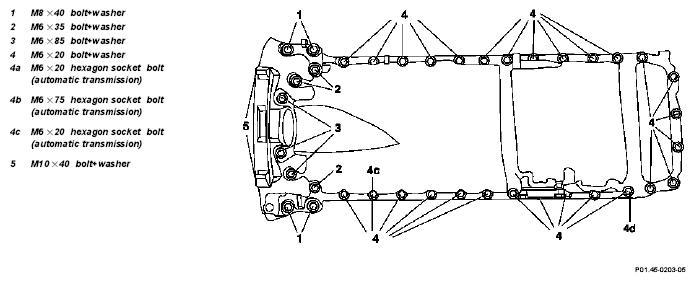

Fig 3: Identifying Oil Sump Bolt Diameters - Engine 602.982/983,605

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 606

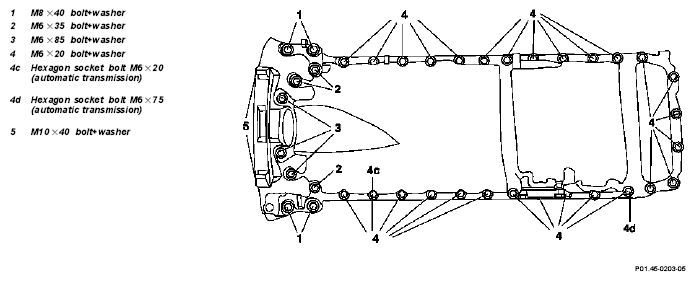

Fig 4: Identifying Oil Sump Bolt Diameters - Engine 606

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
