Tightening diagram of cylinder head bolts - AR01.30-P-5800-01HA

Engine 604, 605, 606

Tightening diagram/bolt allocation

Engine 604/605

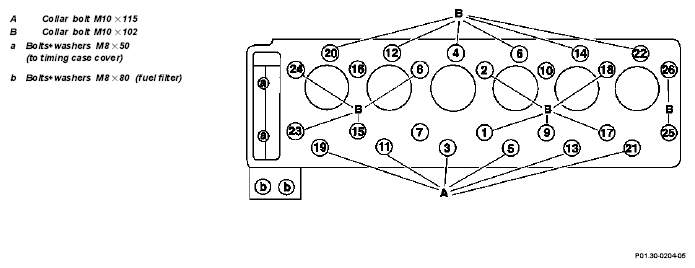

Fig 1: Tightening Diagram Of Cylinder Head Bolts - Engine 604/605

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Tightening diagram/bolt allocation

Engine 606

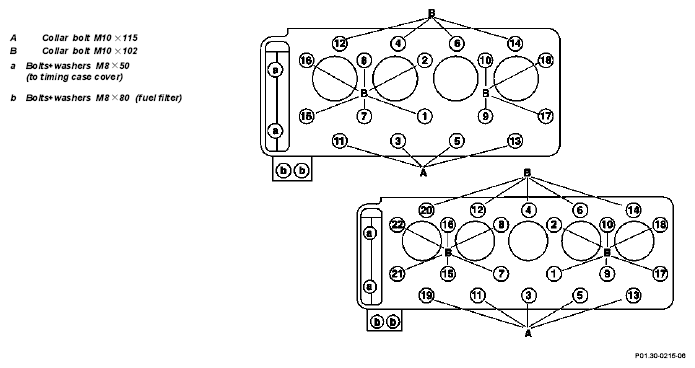

Fig 2: Tightening Diagram Of Cylinder Head Bolts - Engine 606

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
