Remove/install engine with removal fixture - AR01.10-P-2400-01A
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1002-07A | Engine carrier arm |
| WH58.30-Z-1003-07A | Hook mount |
Workshop equipment
| WE58.40-Z-1012-11A | Load regulator (engine hoist), self-locking |

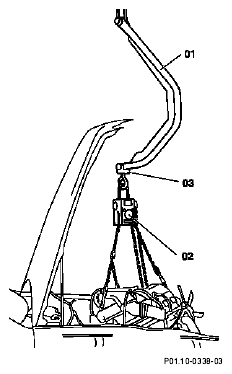

- Remove engine with engine hoist (02), hook mount (03) and engine carrier arm (01).
On model 461, the engine carrier arm is not required as the engine hood can be folded back to the windshield.
