Disconnecting, connecting engine wiring harness - AR01.00-P-2410D
ENGINE 604, 605, 606 in MODEL 210 up to 31.5.96

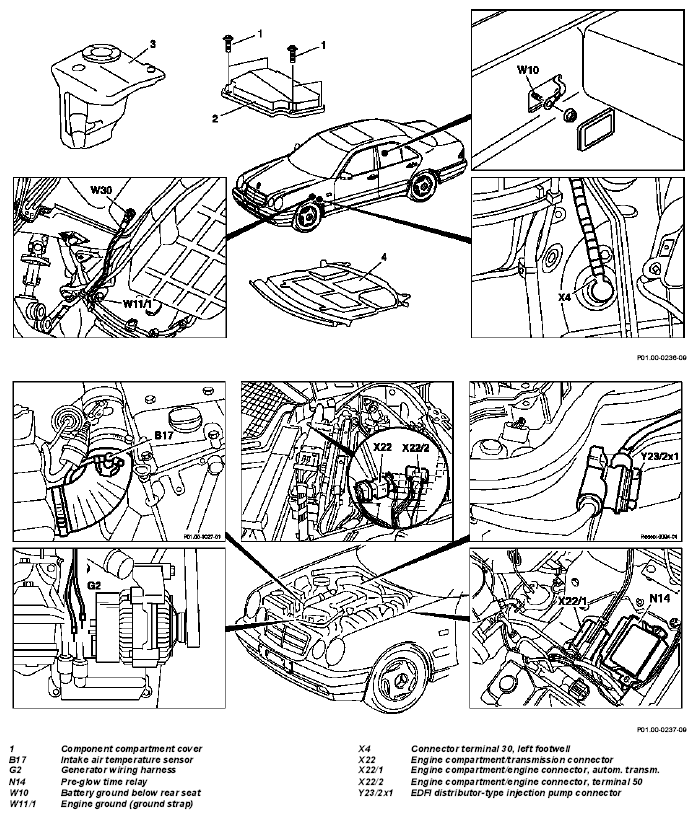

| Fig.item, etc. | Work instructions | ||
|---|---|---|---|
| W10 | Battery ground | disconnect | AR54.10-P-0003A |
| N14x1 | Preglow time relay | Unplug connector (arrow). | |
| 2 | Remove component compartment cover | ||
| X22, X22/2 | Unplug connectors in right of component compartment | Pay attention to fuses of plug connections! | |
| B17x1 | Unplug intake air temperature sensor connector | ||
| X22/1 | Unplug engine compartment/engine connector AG | ||
| Y23/2x1 | Unplug EDFI distributor injection pump connector | ||
| X4 | Connector terminal 30 left footwell | Unbolt cable on outside of body. | |
| G2 | Disconnect generator wiring harness | ||
| W11/1 | Unbolt engine ground (ground strap) | ||
| Unplug AC compressor connector | If AC fitted |
