Cranking engine with starter - AR01.10-P-0110B

ENGINE 604, 605 in MODEL 202

ENGINE 602.982, 604, 605, 606 in MODEL 210

ENGINE 602.983 in MODEL 461

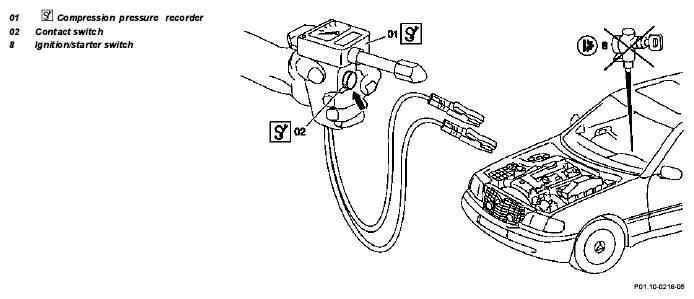

Fig 1: Cranking Engine With Starter

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Switch off ignition	Key in ignition/starter switch (8) in position 0.
2	Connect compression pressure recorder	Engine 604, 605 in model 202	AR01.10-P-0010-01A
		Engine 602.982 in model 210	AR01.10-P-0010-01HW
		Engine 604, 605, 606, in model 210	AR01.10-P-0010-01BG
		Compression tester	Figure
		Adapter cable	Figure
		Electrical connection set	Fig 5
	Risk of accident  as a result of vehicle starting off when engine running. Risk of injury  as a result of bruises and burns if you insert your hands into engine when it is being started or when it is running.	Secure vehicle to prevent it starting off. Wear closed and close-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
3	Crank engine	Do not crank engine at ignition/starter switch (8).
		Press contact switch (02) for this step.
4	Install in the reverse order

Fig 2: Identifying (201 589 00 99 00) Electrical Connection Set

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying (001 589 76 21 00) Compression Tester

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying (124 589 36 63 00) Adapter Cable

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Electrical Connection Set (201 589 00 99 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
