Rear suspension eyes of engine strengthened - BT01.00-P-0001-01A

ENGINE 112,113

Fig 1: Identifying External Torx Set 001 589 76 09 00
G04634635Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  1. REFER TO TEST & ADJUSTMENT VALUES The Mercedes emblem and two numbers (XX) must  be stamped on the suspension eyes which are fitted to the vehicle.
  2. NOTES If the two suspension eyes do not have this marking, they must be replaced.

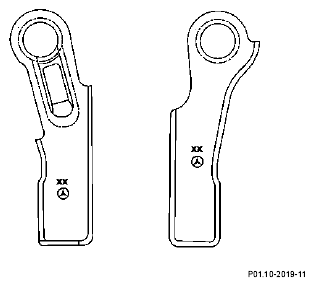

    Fig 2: Identifying Mercedes Emblem And Numbers
    G04634636Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
