Removing, installing oil level sensor - AR18.40-P-4111HA
ENGINE 111, 602.982, 604, 605, 606 / (except, 606.964)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

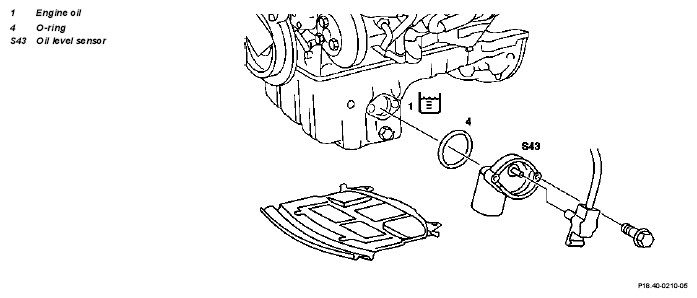

| Fig. item, etc. |
Work instructions |
|
|
| 1 |
Engine oil |
Partially extract or drain |
|
| S43 |
Oil level sensor |
Replace O-ring (4) |
|
