Removing and installing engine oil cooler - AR18.30-P-1000A

ENGINE 606.962 in MODEL 210

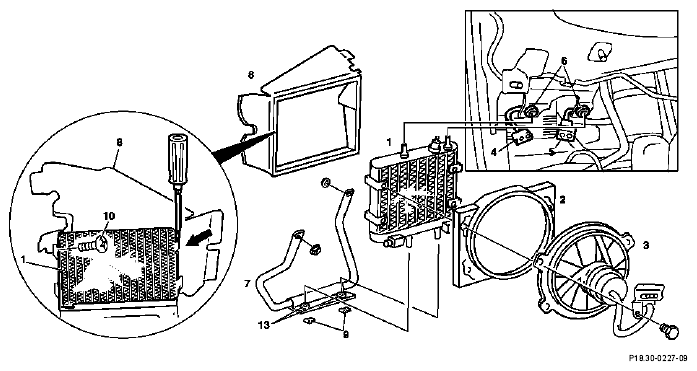

Fig 1: Identifying Engine Oil Cooler Removal/Installation (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

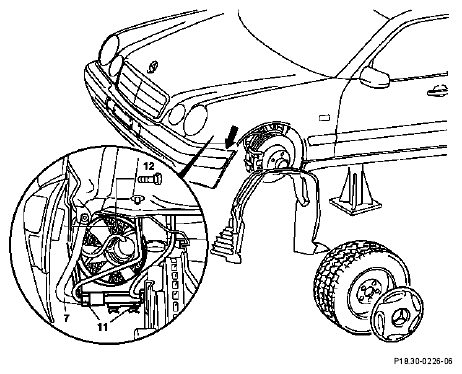

Fig 2: Identifying Engine Oil Cooler Removal/Installation (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Remove left front wheel
2	Remove bottom section of noise encapsulation at the front		AR94.30-P-5300AB
3	Remove inner wheel house liner on the left
4	Unscrew engine oil pipes (11) from engine oil cooler (1)	Collect any oil which runs out
5	Unscrew fixing bolt (12) of bumper bracket in left front fender	Turn bumper downwards (arrow)
6.1	Disconnect fan motor connector (4)	On vehicles with trailer coupling only
7	Unscrew nuts of retainer (7)
8	Remove engine oil cooler unit downwards	Installation:  Pay attention to rubber grommets (6)
9	Unplug plug (5) on temperature sensor
10.1	Detach blower (3)	On vehicles with trailer coupling only Installation:  Replace self-locking bolts
11.1	Remove blower ring (2)	On vehicles with trailer coupling only
12	Pull off retaining clips (9)
13	Remove retainer (7)	Installation:  Pay attention to rubber grommets (13)
14	Remove surrounding gasket (8)	To do this, unscrew cross-head screw (10) and press locking detent (arrow) with screwdriver
15	Install in reverse order
16	Check and correct engine oil level	The engine oil cooler thermostat only opens at an engine oil temperature of 110°C, bring the engine oil temperature to 110°C so that the oil circuit is filled completely, then check and correct the engine oil level again.
