Removing, installing coolant pump housing - AR20.10-P-1270HA

ENGINE 605, 606 in MODEL 124

ENGINE 606.961 in MODEL 140

ENGINE 604, 605 in MODEL 202

ENGINE 604, 605, 606.912 /962 in MODEL 210

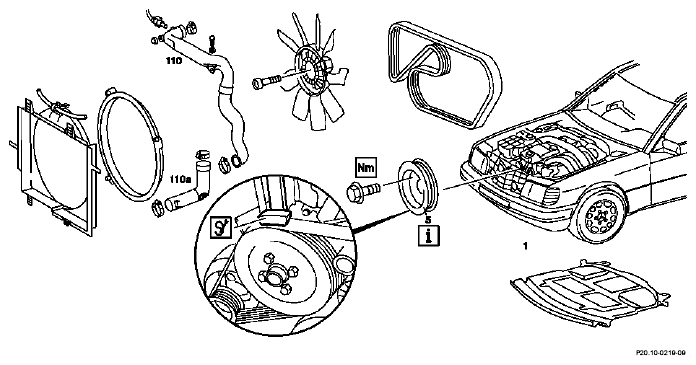

Fig 1: Identifying Coolant Pump Housing Components (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

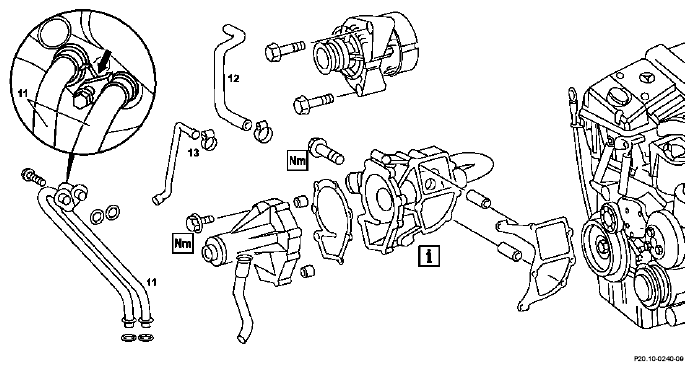

Fig 2: Identifying Coolant Pump Housing Components (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing, installing
1	Disconnect ground cable of battery		AR54.10-P-0003A
	Risk of injury  to skin and eyes from scalding from hot coolant which splashes out. Risk of poisoning  from swallowing coolant.	Do not open the cooling system unless the coolant temperature is below 90 °C. Open cap slowly and allow the pressure to release. Do not pour coolant into containers for drinks. Wear protective gloves, protective clothes, and eye protection.	AS20.00-Z-0001-01A
2	Drain coolant	At radiator and crankcase	AR20.00-P-1142HA
	Notes on coolant	All engines	AH20.00-N-2080-01A
3.1	Remove charge air pipes (110 and 110a)	Engine 605.960 in model 202	AR09.41-P-1311H
4	Remove viscous fan clutch	Engine 605, 606 in model 124 Engine 606.961 in model 140 Engine 605 in model 202 Engine 605, 606 in model 210	AR20.40-P-5660HB
		Engine 604 in model 202, 210	AR20.40-P-5660HA
5	Slacken bolts of belt pulley of coolant pump (5)	Position counterholder against belt pulley of coolant pump (5)
			Fig 3
			*BA20.10-P-1001-01A
6	Remove poly V-belt	Inspect poly V-belt, belt pulley sections and tensioning device for signs of damage and dirt, replace if necessary ↓	AR13.22-P-1202HA
		Inspect poly V-belt, typical damage	wh1351pkw0000x
7	Take off belt pulley of coolant pump (5)
8.1	Unbolt lines of oil-water heat exchanger (11) at coolant pump housing and remove	Model 124, model 202 up to 07.94 with oil-water heat exchanger at oil sump. Installation:  replace O-rings. Coat O-rings with coolant before installing; do not use engine oil. Pay attention to installation position (arrow) of line fixtures.
9	Disconnect coolant hoses at coolant pump housing (12, 13)	Inspect condition of coolant hoses and hose clips, replace if necessary
			*WH58.30-Z-1001-06A
			*WH58.30-Z-1002-06A
10	Remove generator	Attach to side of vehicle with lines connected
11	Remove coolant pump housing (16) together with coolant pump (179	Installation  : clean sealing surfaces. Replace gasket (14). Pay attention to dowel sleeves (15).
			*BA20.10-P-1003-01A
12	Unbolt coolant pump (17) at coolant pump housing (16)	Installation  : clean sealing surfaces. Replace gasket (10). Pay attention to dowel sleeves (9).
			*BA20.10-P-1002-01A
13	Install in the reverse order
	Risk of accident  as a result of vehicle starting off when engine running. Risk of injury  as a result of bruises and burns if you insert your hands into engine when it is being started or when it is running.	Secure vehicle to prevent it starting off. Wear closed and close-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
14	Inspect cooling system for leaks	Run engine and inspect for leaks	AR20.00-P-1010HA
15	Read fault memory, erase	Stored faults which may be caused by disconnecting cables or by simulation when carrying out removal and installation or test work, have to be processed and erased in the fault memories after completing the work. Diagnosis Manual Volume 1.1, Index 0: Connecting and using test equipment

Coolant pump, coolant thermostat

Fig 3: Identifying Counter-Holder (603 589 00 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
