Removing and installing front axle gear propeller shaft - AR41.10-P-0070A

MODEL 210.08 /28

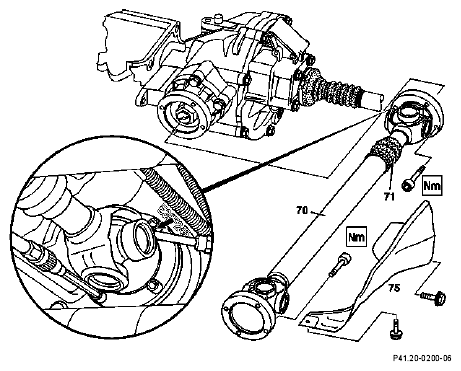

Fig 1: Identifying Front Axle Gear Propeller Shaft Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Modification notes

14.6.00	Value changed from 35 Nm to 30 Nm	Value in BA33.30-P-1002-02A changed for model 210.08/28	*BA33.30-P-1002-02A
14.6.00	Value changed from 35 Nm to 30 Nm	Value in BA33.30-P-1003-02A changed for model 210.08/28	*BA33.30-P-1003-02A

	Removing, installing
1	Remove right exhaust shielding plate (75)
2	Unscrew propeller shaft bolts	Installation:  When tightening the bolts, counter the propeller shaft using a screwdriver (arrow)
			*BA33.30-P-1002-02A
			*BA33.30-P-1003-02A
3	Remove propeller shaft (70)
	Checking
4	Check universal joints and replace propeller shaft (70) if necessary
5	Check rubber boot (71) and replace if necessary	If necessary, after checking: ↓
		Replace rubber boot on front axle gear propeller shaft	AR41.10-P-0070-01A
6	Install in the reverse order

Front axle shaft

Number	Designation		Model 210.08/28
BA33.30-P-1002-02A	Bolt, front axle gear propeller shaft to front axle gear flange	Nm	30
BA33.30-P-1003-02A	Bolt, front axle gear propeller shaft to transfer case flange	Nm	30
