Clutch pedal switch, location/task/function - GF29.10-P-2100F

MODELS 124.008 /022 /028 /029 /032 /042 /052 /062 /066 /082 /088 /092 #0

MODELS 129.058 /059 /063 /064 #0

MODELS 140.028 /032 /033 #0

MODELS 163.136 #0

MODELS 168.031 /032 /033 /035 /131 /132 /133 /135 #0 except CODE (421a) Automatic clutch system

MODELS 170.435/444/445/447/449 #0

MODELS 202.018 /020 /022 /023 /024 /025 /026 /028 /029 /078 /080 /081 /083 /086 /087 /089 #0

MODELS 203.035 /045 /061 /064 /235 /245 /735 /745 #0

MODELS 208.335 /344 /345 /347 /348 /435 /445 /447 /448 #0

MODELS 210.035 /037 /048 /053 /055 /061 /062 /063 /065 /081 /235 /237 /248 /261 /262 /265 /281 /663 #0

MODELS 211.061 /261 /080 /280 #0

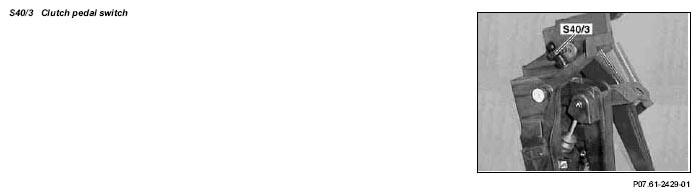

	Clutch pedal switch, location	Model 168 with MT except code 421 a	GF29.10-P-2100-01GC
		Model 203 with MT	GF29.10-P-2100-01P
	Clutch pedal switch, task	To send a signal to the engine control unit when the clutch is actuated. To Stabilizing idle speed On engine 166 shutoff of combustion misfire control.
	Clutch pedal switch, function	The switch has one contact which switches to ground. Clutch pedal not operated: contact closed. Clutch pedal operated: contact open. (except engine 166): Starter control is released by the motor electronics control unit when the clutch pedal is operated.
