Electrically adjustable outside rearview mirrors, location of components - GF88.79-P-0005-01A

Location of components

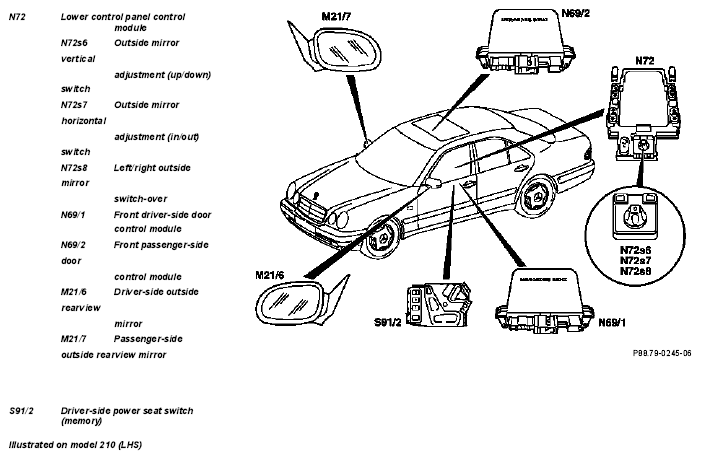

Fig 1: Identifying Electrically Adjustable Outside Rearview Mirrors Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
