Removal and installation of PSE control module (A37/2-A37/5) - AR80.20-P-2700F

MODEL 210

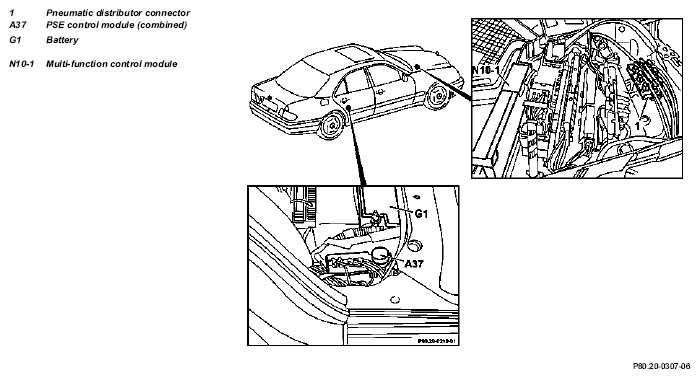

Fig 1: Identifying PSE Control Module

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove rear bench seat
	Open foam rubber blocks with PSE control module (combined)
3	Disconnect electrical connectors on PSE control module (combined)
4	Disconnect pneumatic distribution connector on PSE control module (combined)	For this purpose pull retainer
5	Check electrical function of PSE control module (combined)	See Diagnosis Manual, Body
6	Check pneumatic function of PSE control module (combined)	See Diagnosis Manual, Body
7	Reinstall in opposite order	If PSE control module is replaced, version coding with HHT is necessary on vehicles as of 03/97
