Adjusting throttle control - AR30.10-P-1010BA

ENGINE 113.940 #2 in MODEL 210.070 /270

ENGINE 112.923 #2 in MODEL 129.059

ENGINE 112.943 #2 in MODEL 129.064

ENGINE 113.961 #2 in MODEL 129.068

ENGINE 113.980 #2 in MODEL 210.074/274

Model 129.061

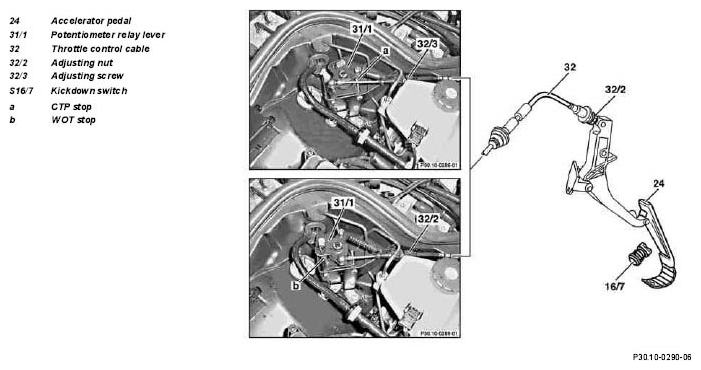

Fig 1: Identifying Throttle Control Components (Model 129.061)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210.070/270

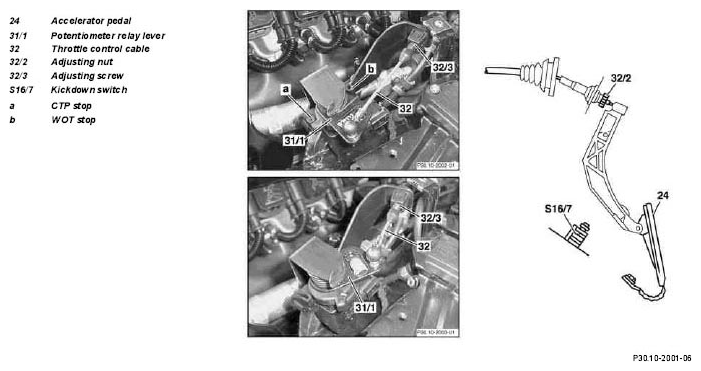

Fig 2: Identifying Throttle Control Components (Model 210.070/270)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Inspecting
1	Inspect ease of operation and condition of relay lever (31/1) and throttle control cable (32)	Replace parts if necessary.
	Adjusting
2	CTP  The relay lever (31/1) should be resting against the CTP stop (a)  when accelerator is released
3	Turn adjusting nut (32/2) sufficiently until relay lever (31/1) is resting against CTP stop (a)  or until there is no further accelerator pedal idle travel
4	WOT  Depress accelerator (24) until it is touching the kickdown switch (S16/7)	Do not operate kickdown switch (S16/7)
5	Turn adjusting screw (32/3) until relay lever (31/1) is resting against WOT stop (b)	Do not over-tension throttle control cable (32).
	Inspecting
6	Check WOT and CTP setting
