Removing and installing control cable - AR77.20-P-1400E
MODEL 202 with CODE (412b) Electrically operated tilting/sliding roof with CODE (414a) Electrically operated glass tilting/sliding roof
| Removal, installation | |||
|---|---|---|---|
| 1 | Remove cover on tilting/sliding roof | AR77.20-P-0500E | |
| 2 | Remove tilting/sliding roof panel | AR77.20-P-1000E | |
| 3 | Adjust tilting/sliding roof panel | AR77.20-P-1100E | |
| 4 | Remove interior rear view mirror | ||
| 5 | Remove front dome lamp | AR82.20-P-0110E | |
| 6 | Disconnect sliding roof drive from tilting/sliding roof frame | AR77.20-P-1700-01E | |
| 7 | Remove tilting bracket | AR77.20-P-1700-02E | |
| For reinstalling tilting bracket, see | AR77.20-P-1700-03E | ||

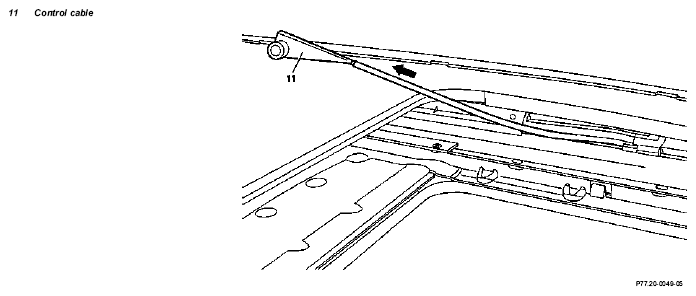

| 8 | Pull out control cable (11) | ||
| 10 | Reinstall in opposite order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Lubricant | A 001 989 46 51 |
