Gap dimensions at hoods, doors and covers - AR60.00-P-0700-01E
TEST AND ADJUSTMENT VALUES, GAP DIMENSIONS AT HOODS, DOORS AND COVERS
| Number | Designation | Model 202.01/02/033/12/13 | |||
|---|---|---|---|---|---|
| BE60.00-P-1001-01A | Gap dimension | Engine hood to fender | Dim. "A" | mm | 5.0 (± 0.5) |
| Engine hood to headlamp | Dim. "R" | mm | - | ||
| Engine hood to radiator grille | Dim. "O" | mm | - | ||
| Radiator grill to headlamp | Dim. "N" | mm | - | ||
| Fig., see | AR60.00-P-0700-01E | ||||
| BE60.00-P-1002-01A | Gap dimension | Front door to A-pillar | Dim. "B" | mm | 6.0 (+1) |
| Front door to fender | Dim. "H" | mm | 5.0 (+1) | ||
| Front door to rear door | Dim. "I" | mm | 6.0 (+1) | ||
| Front door to roof | Dim. "C" | mm | 6.0 (+1) | ||
| Rear door to upper side section | Dim. "D" | mm | 6.0 (+1) | ||
| Rear door to lower side section | Dim. "J" | mm | 5.0 (±0.5) | ||
| Fender to A-pillar | Dim. "Q" | mm | - | ||
| Front door to rear fender | Dim. "P" | mm | - | ||
| Fig., see | AR60.00-P-0700-01E | ||||
| BE60.00-P-1003-01A | Gap dimension | Trunk lid to top of rear fender | Dim. "F" | mm | 4.5 (± 0.5) |
| Trunk lid to bottom of rear fender | Dim. "M" | mm | 5.0 (± 0.5) | ||
| Trunk lid to rear fender | Dim. "F" | mm | - | ||
| Trunk lid to tail lamp | Dim. "M" | mm | - | ||
| Trunk lid to bumper | Dim. "V" | mm | - | ||
| Rear fender to tail lamp | Dim. "U" | mm | - | ||
| Fig., see | AR60.00-P-0700-01E | ||||
| BE60.00-P-1004-01A | Gap dimension | Tailgate to roof | Dim." E" | mm | - |
| Tailgate to D-pillar | Dim. "F" | mm | - | ||
| Tailgate to D-pillar | Dim." G" | mm | - | ||
| Tailgate to rear fender | Dim. "M" | mm | - | ||
| Fig., see | - | ||||
| BE60.00-P-1005-01A | Gap dimension | Fuel filler flap | Dim. "K" | mm | 4.0 |
| Dim. "L" | mm | 4.5 | |||
| Fig., see | AR60.00-P-0700-01E | ||||
Special tools

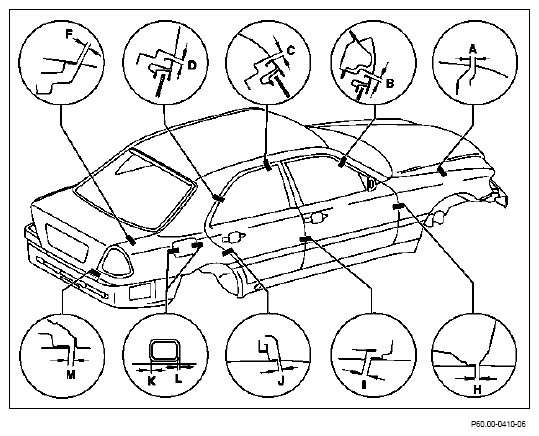

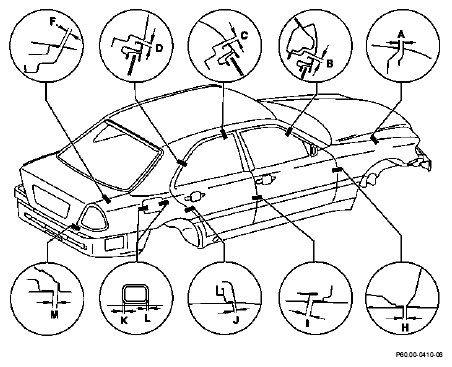

Adjust hoods, doors and lids as shown in drawing. The gap should not run wedge-shaped or be too narrow at points.
Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on bodies damaged in accidents.
