Remove and install transmission - AR26.10-P-0020GH

TRANSMISSION 717.4 in MODELS 163.136

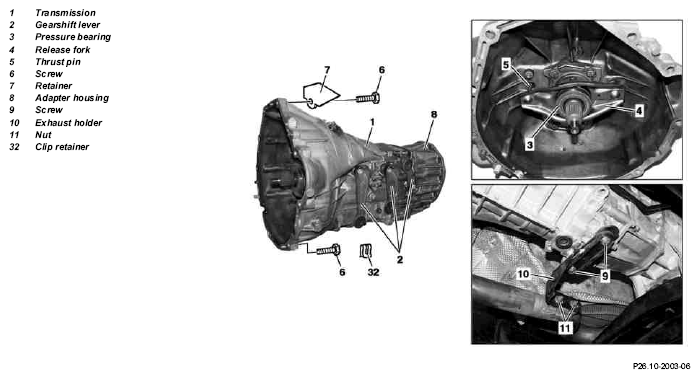

Fig 1: Identifying Transmission Remove/Install Components - Transmission 717.4 In Models 163.136

	Remove, Install
1	Disconnect ground cable of battery	Installation: Code radio, set clock, calibrate power windows and set timer on vehicles with stationary heater	AR54.10-P-0003A
2	Remove transfer case.		AR28.10-P-0100GH
3	Unscrew nuts (11).
4	Unscrew bolts (9) from transmission and remove exhaust bracket (10)
5	Remove clip retainer (32) and take shift rod out of the gearshift lever (2)		Fig 3
6	Remove clutch slave cylinder	Do not detach the hydraulic line from the slave cylinder. Disconnect the slave cylinder. Installation: When installing the slave cylinder, make sure that the thrust pin (5) rests in the ball-shaped recess in the clutch release fork (4).	AR25.20-P-0150A
7	Use jack to support transmission (1).		*WE58.40-Z-1018-11A
8	Unscrew bolts (6) from engine block and use jack to extract the transmission (1) by simultaneously pulling backward and down.	Push retainer (7) upwards.	*BA26.10-P-1002-01A
9	Check the thrust bearing (3), clutch release fork (4) and grooved ball bearing of crankshaft
10	Check transmission oil level	Lubricant should reach to the lower edge of the filler orifice.	*BF26.10-P-1001-01A
			Fig 2
11	Install in the reverse order

TRANSMISSION COMPLETE

TRANSFER CASE COMPLETE

Number	Designation		Model Series 163
BA28.10-P-1003-01A	Bolt, adapter housing to transmission housing	Nm	20

TRANSMISSION, COMPLETE UNIT

Number	Designation			Transmission Series 717.4
BF26.10-P-1001-01A	Gear oil	Capacity	Liter	1,5
BF26.10-P-1001-01A	Gear oil	Specifications for Service Products	Sheet	BB00.40-P-0236-02A

Fig 2: Identifying Grab Handle (117 589 02 07 00)

Fig 3: Identifying Pliers (210 589 00 37 00)

WORKSHOP EQUIPMENT

WE58.40-Z-1018-11A

Transmission platform
