Removing, installing |
|
|
| 1 |
Disconnect and connect ground cable from battery |
Models 129, 163, 168, 170, 202, 208, 210 |
AR54.10-P-0003A |
| Disconnect ground cable from battery |
Model 140 |
ra54001400003x |
| 2 |

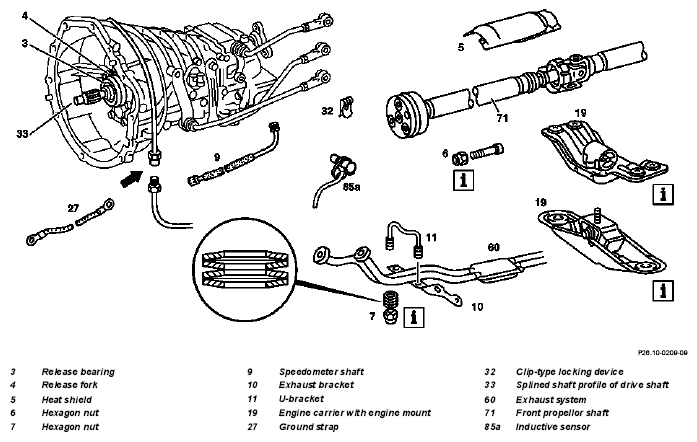

Remove engine carrier with engine mount (19) |
Support transmission beforehand |
|
| 3 |
Remove exhaust bracket (10) and U-bracket (11) |
Replace self-locking nuts (7) |
|
| 4 |
Remove heat shield (5) |
|
|
| 5 |
Unscrew front propeller shaft (71) |
Replace self-locking nuts (6) |
|
| Model 140 |
AR41.10-P-0050DA |
| Model 170, 202, 208 |
AR41.10-P-0050EA |
| Model 210 |
AR41.10-P-0050B |
| Model 124, 126 |
ra4100107b050x |
| Model 129 |
AR41.10-P-0050A |
| Model 201 |
ra4100107c050x |
| 6 |
Unhook exhaust system (60) from rear hanger |
Hang up with a V-belt |
|
| 7 |
Unscrew speedometer shaft (9) or inductive sensor (85a) |
|
|
 |
Risk of poisoning
due to consuming brake fluid. Risk of injury
due to brake fluid contacting skin and eyes. |
Only pour brake fluid into suitable, appropriately marked containers. Wear protective clothing and safety glasses when handling brake fluid. |
AS42.50-Z-0001-01A |
| 8 |
Disconnect pipe connection (arrow) for clutch actuation |
|
|
|
Notes on brake fluid |
All models |
AH42.50-P-0001-01A |
| 9 |
Remove clip-type locking devices (32) and unhook shift rods |
Remove transmission downwards at an angle |
|
| 10 |
Unscrew ground strap (27) from transmission |
|
|
| 11 |
Unscrew transmission from engine block |
Vehicles without dual-mass flywheel |
|
| 12 |
Lightly lubricate splined shaft profile of drive shaft (33) |
Check transmission fluid level |
|
| 13 |
Check thrust bearing (3), release fork (4) and deep-groove ball bearing of crankshaft |
|
|
| 14 |
Install in reverse order |
|
|
| 15 |
Check transmission fluid level |
Correct oil level = bottom edge of filler opening |
*BF26.10-P-1001-01A |
| 16 |
Bleed clutch actuation |
|
AR25.20-P-0070A |
