Adjusting wire cables for parking lock interlock - AR27.60-P-0965B
TRANSMISSION 722.60 /61, 722.620 ## as of 1681, 722.621 ## as of 1977, 722.622 ## as of 16287, 722.623 /624 /625 /626 /627 /628 /629 /63 /66 /69

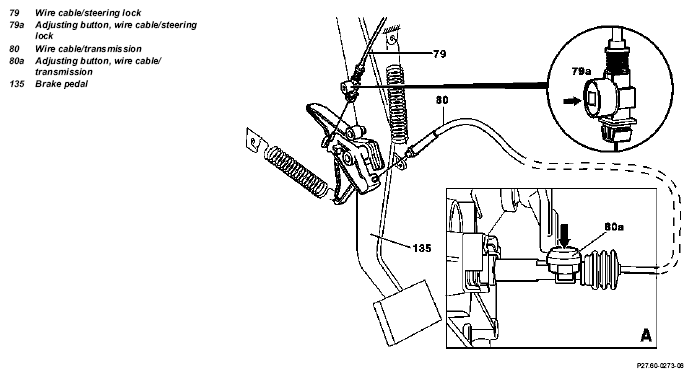

Fig 1: Identifying Wire Cables For Parking Lock Interlock Adjusting Components - Transmission 722.60 /61, 722.620 ## As Of 1681, 722.621 ## As Of 1977, 722.622 ## As Of 16287, 722.623 /624 /625 /626 /627 /628 /629 /63 /66 /69
MODIFICATION NOTES
| 15.10.97 | Sequence of work steps revised |
| The selector lever must be in position "P" for all adjustment work. | |||
| Adjusting wire cable/steering lock | |||
| 1 | Pretension spring on adjusting button (79a) | ||
| 2 | Turn key in steering lock to position "0" | ||
| 3 | Adjust wire cable/steering lock (79) by pressing adjusting button (79a) (arrow) | ||
| Adjusting wire cable/transmission | |||
| 4 | Pretension spring on adjusting button (80a) | ||
| 5 | Turn key in steering lock to position "0" | ||
| 6 | Adjust wire cable/transmission (80) by pressing the adjusting button (80a) (arrow) Figure A |
