TELE AID arrangement of components - GF82.95-P-0001-01F

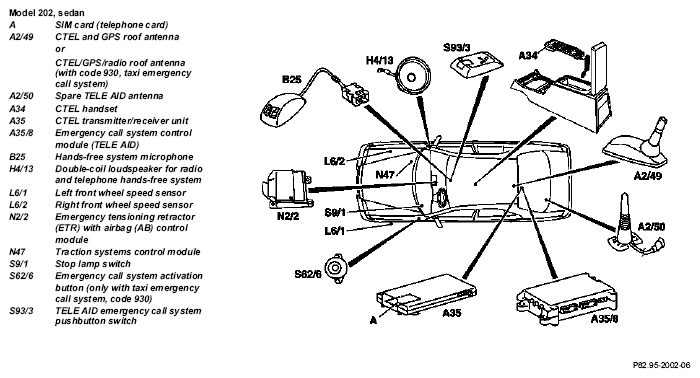

Fig 1: Identifying TELE AID Arrangement Of Components - Model 202, Sedan
G04714053

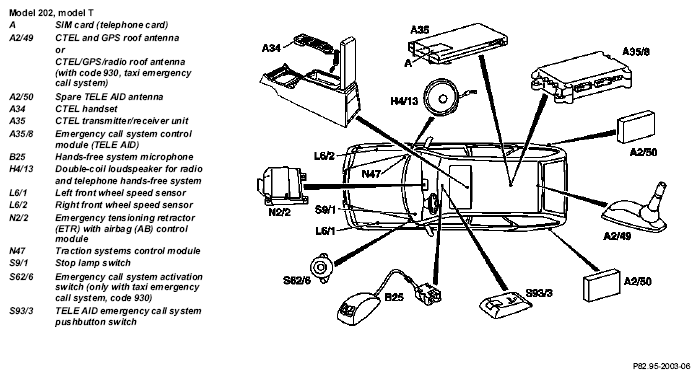

Fig 2: Identifying TELE AID Arrangement Of Components - Model 202, Model T
G04714054

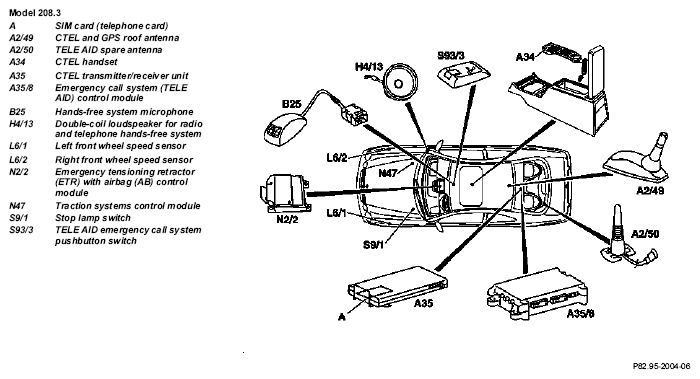

Fig 3: Identifying TELE AID Arrangement Of Components - Model 208.3
G04714055
