Removing and installing overhead control panel control module - AR82.20-P-1000M
MODEL 215, 220
Illustrated on model 220

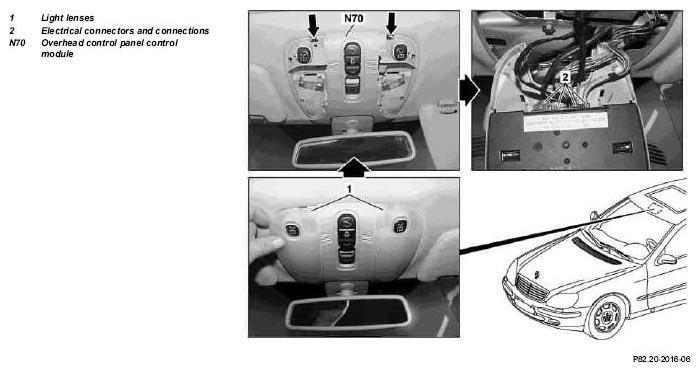

Fig 1: Identifying Overhead Control Panel Control Module Remove/Install Components - Illustrated On Model 220
| Removal, installation | |||
| 1 | Remove light lenses (1) | ||
| 2 | Press clips (arrows) in direction of arrow and swing overhead control panel control module (N70) down | ||
| 3 | Disconnect electrical connectors (2) and connections (2) on overhead control panel control module (N70) | ||
| 4 | Install in opposite order |
