Removing and installing overhead control panel control module - AR82.20-P-1000K
MODEL 202 as of 1.6.97, 208,
210 as of 1.3.97
  |
Removal, installation |
|
|
| 1 |

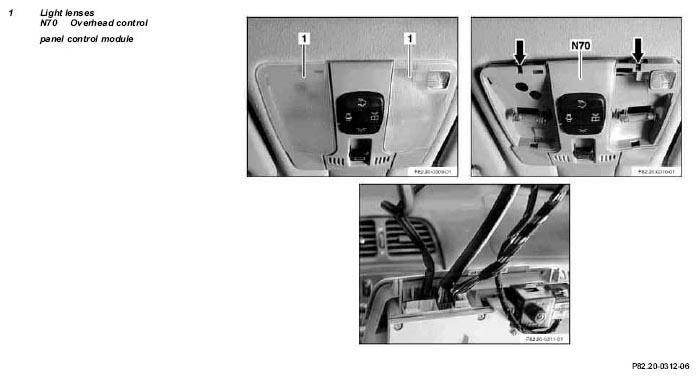

Pry out lenses (1) |
|
|
| 2 |
Press in clips (arrows) |
|
|
| 3 |
Pry out overhead control panel control module (N70) toward front |
|
|
| 4 |
Disconnect electrical connectors on overhead control panel control module (N70) |
|
|
| 5 |
Reinstall in opposite order |
|
|
