Removing and installing loudspeakers in instrument panel - AR82.62-P-7833EA

MODEL 202

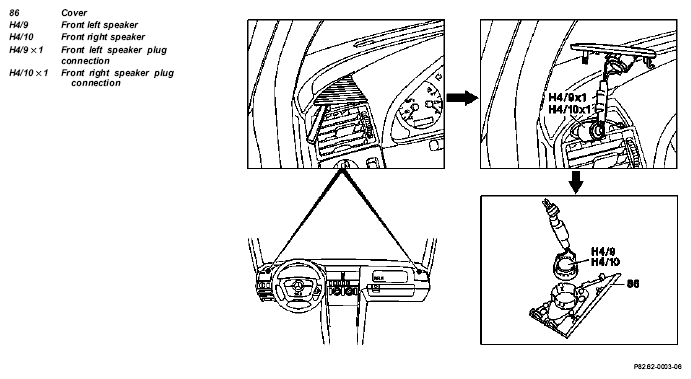

Fig 1: Identifying Loudspeakers In Instrument Panel Remove/Install Components - Model 202

	Removal, installation
1	Use plastic wedge to press out cover (86) (arrow)
2	Remove cover (86) together with speaker
3	Separate plug connection (H4/4x1, H4/10x1)
4	Unclip speakers (H4/9, H4/10) at cover (86)
5	Install in the reverse order
