Removing and installing GSM 1800 MHz network compensator - AR82.70-P-0010AB
MODEL 202.07 /08 /18 /19 as of 1.7.00 with CODE (854) MB cellular telephone

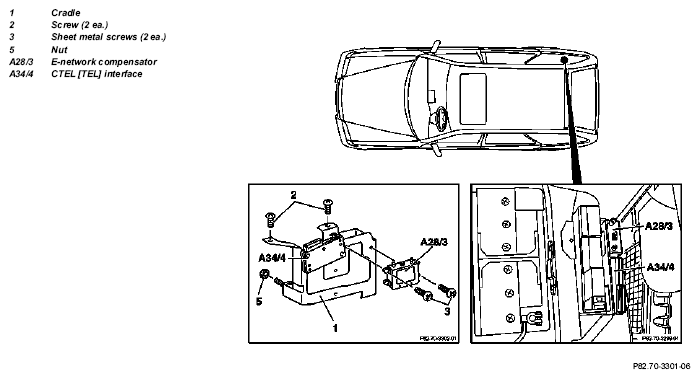

Fig 1: Identifying GSM 1800 MHz Network Compensator Remove/Install Components - Model 202.07 /08 /18 /19 As Of 1.7.00 With Code (854) MB Cellular Telephone
| Removal, installation | |||
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| 2 | Remove battery | AR54.10-P-0005EA | |
| 3 | Remove side paneling in right rear | AR68.30-P-4780A | |
| 4 | Unscrew screws (2) | ||
| 5 | Unscrew nut (5) | ||
| 6 | Carefully lift cradle (1) with control modules out of spare wheel recess | ||
| 7 | Release connector on E-network compensator (A28/3) and disconnect | ||
| 8 | Disconnect antenna connections | ||
| 9 | Loosen sheet metal screws (3) | ||
| 10 | Remove E-network compensator (A28/3) | ||
| 11 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
