Removing and installing paneling on A-pillar - AR68.30-P-4050K

MODEL 208.3 /4

Shown on Model 208.3

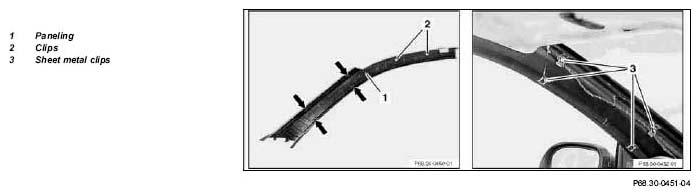

Fig 1: Identifying Paneling On A-Pillar Remove/Install Components - Model 208.3 /4

	Removal, installation
1.1	Remove paneling on B-pillar	Only on model 208.3	AR68.30-P-4700K
1.2	Remove paneling from upper windshield	Only on model 208.4	AR68.30-P-4250KA
2	Unclip paneling (1) toward center and pull off
3	Pull paneling (1) out of sheet metal clips (3) in area of A-pillar
4	Remove paneling (1) to rear	When installing check clips and sheet metal clips, replace damaged clips. Installation:  Install paneling (1) into instrument panel with catch lugs. Lift door edge guard over paneling (1).
5	Install in the reverse order
