Remove/install cover on gearshift lever - AR68.20-P-2310T
MODEL 211.0/ 2/ 6
Shown with code (889) Keyless go
MODIFICATION NOTES
| 5.7.06 | "Disconnect/connect battery ground line" removed |
| Remove/install | |||
|---|---|---|---|

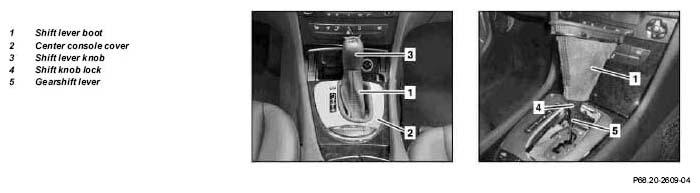

| 1 | Unclip shift lever boot (1) from center console cover (2) with long wedge | Figure | |
| 2 | Pull shift lever boot (1) over shift knob (3) | ||
| 3 | Release shift knob lock (4) by turning clockwise | ||
| 4 | Remove shift knob (3) from shift lever (5) together with shift lever boot (1) | ||
| 5 | Install in the reverse order |
